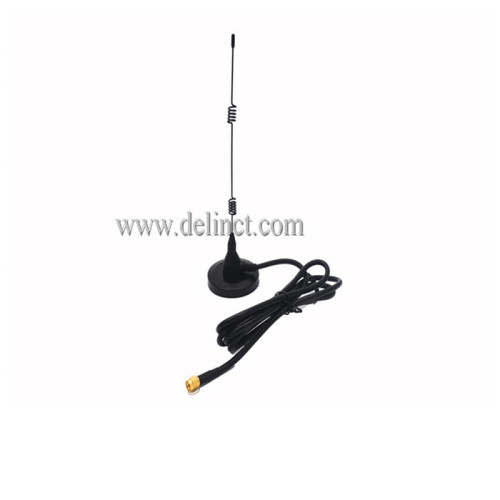

1.4G Chuck Antenna High Quality Digital Television Antenna

The 1.4G antenna is a high gain transmission set up specifically for digital TV receiving antenna, the antenna is made of high quality alloy, beautiful appearance, convenient installation, wide frequency range, good performance, has receive a steady, anti salt fog corrosion resistance, anti-jamming, factory all detected by strict import network analyzer the antenna is arranged at the bottom of the magnet can be adsorbed in the car, easy to use.

Mechanical Specifications

1 Size :28x150mm

2 Weight :50gram

3 Color :Black

4 Cable :RG174  3m

5 Connector :SMA

6 Mounting  :Magnetic

7 Operating Condition

8 Temperature:-40ºC~+85ºC

9 Humidity:  0%~95%

10 Storage Condition

11 Temperature:-45ºC~+85ºC

12Humidity:  0%~95%

Antenna Characteristic

1 Range of Receiving Frequency: 1447-1467(MHz)

2  Band Width(MHz) :20

3 V.S.W.R(in Center Frequency): ≤2.0

4 Gain (Zenith)(dBi typ) :2

5 Poling: linear polarization

6 Impedance(Ω): 50
