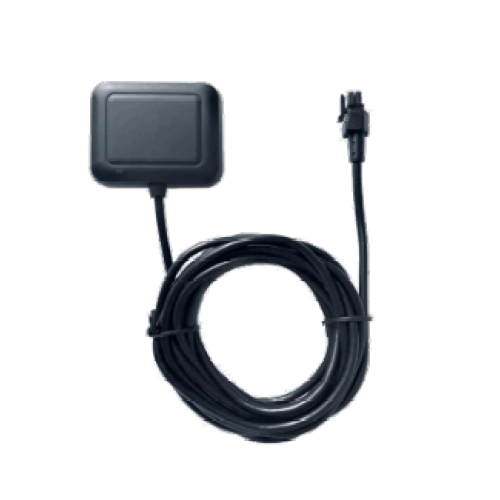

Gnss Module Antenna with Mediatek Mt3337 Chip Set

      The DL-5546-3MMX5V-GCM is a complete GPS engine module that features super sensitivity, ultra low power and small form factor. The GPS signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.

Its –165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, mobile phones, cameras and vehicl navigation systems.

   Features
 Build on high performance, low-power MediaTek MT3337 chip set
 Ultra high Track sensitivity: -165dBm
 Extremely fast TTFF at low signal level
 Built in high gain LNA
 Built-in super capacitor for backup ephemeris
 Low power consumption: Max   28mA/3.3V
 NMEA-0183 compliant protocol
 Operating voltage: 3.3V to 5.0V
 Operating temperature range: -40to85℃
 Patch Antenna Size: 25x25x4mm
 Small form factor: 55x46x14.5mm
 Communication type: UART/TTL
 Wire interface type: Molex 4 PIN, L=300cm
 RoHS compliant (Lead-free)

Key Features
Parameter                                     Specification
Power Consumption                     Acquisition: 28mA/VCC=VBAT=5.0V
                                                     Tracking: 20mA /VCC=VBAT=5.0V

                                                     Backup: 7uA/VBAT=3.3V
Receiver Type                              Code 66 search channels, GPS&&QZSS L1 1575.42MHz C/A

                                                     22 synchron ous tracking channels
Sensitivity                                     Tracking: -165dBm
                                                     Re-acquisition: -156dBm
                                                     Acquisition: -147dBm

TTFF (EASY enabled)                 Cold start: 15s typ @-130dBm
                                                     Warm start: 5s typ @-130dBm
                                                     Hot start : 1s typ @-130dBm

TTFF (EASY disabled)                 Cold start(Autonomous): 35s typ @-130dBm
                                                     Warm start (Autonomous): 30s typ @-130dBm
                                                     Hot start (Autonomous): 1s typ @-130dBm

Horizontal Position                       <2.5m CEP @-130 dBm
Accuracy (Autonomous)
Max Update Rate                         Up to 10Hz,1Hz by fault
Accuracy of 1PPS Signal             not enabled
Acceleration Accuracy                 Without aid: 0.1m/s²
Dynamic Performance                 Maximum altitude: 18,000m
                                                     Maximum velocity: 515m/s
                                                     Acceleration: 4G
UART Port                                   UART Port: TXD and RXD
                                                    Baud rate: 9600bps
                                                    UART port is used for NMEA output
