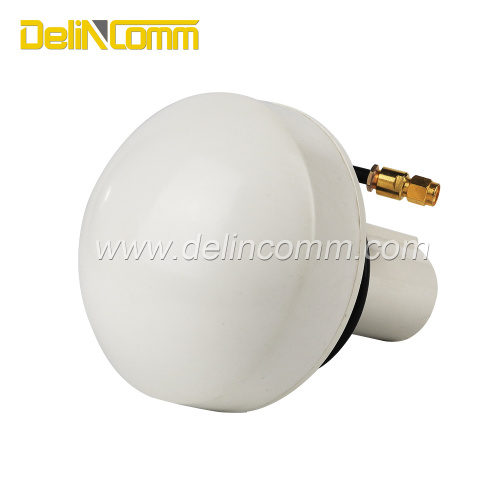

GPS Mushroom-head Receiving Antenna
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Transportation:
- Ocean, Air
- Port:
- Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangzhou |
|---|---|
| Productivity: | 100000/Day |
| Supply Ability: | 100000/Day |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB |
| Certificate: | Ce, RoHS, FCC, ISO2000 |
| HS Code: | 8517706000 |
| Transportation: | Ocean,Air |
| Port: | Guangzhou |
Support to marine navigation and timing system,Combining with Pole BEIDOU ǁ and GPS antenna.
Dielectric Antenna Specifications
Item Specifications
Range of Receiving Frequency 1575.42 MHz
Band Width(Return Loss≤-10dB) ≥10 MHz
V.S.W.R(in Center Frequency) ≤1.5
Gain 3.0 dB
Polarization Right-Handed Circular
Characteristic Impedance(Ω) 50
LNA Specifications
Item Specifications
Frequency range 1575.42 MHz
LNA gain ≥30dB
V.S.W.R ≤1.5
Noise Figure ≤1.5
Reflection loss -14dB
P-1 ≥ +10dBm
Interference rejection 30dB±100MHz
DC voltage 3-5V
|
