Lifter Mechanism In Injection Molding

What is Injection Molding Lifter?
The Mold Lifter Mechanism is typically attached to the ejector plates with a slide and gibs. These components have some clearance to allow for mechanical movement. In most cases, the lifter rod or shank will be shortened by 0.002-0.003 in. to accommodate these clearances and make sure the lifter is down tight during mold close. In one case where I refurbished a mold with new lifters, the parts produced had a clip detail that was out of spec by 0.007 in. I knew I had the lifters properly positioned before sampling the mold, as was verified on subsequent examination. The lifters were on a 7° angle but had too much unsupported length. The plastic pressure was deflecting the lifter shank and pushing the lifter down during the injection process. In this case, we raised the lifter, the opposite of pre-load, to compensate. Not the greatest solution, but redesigning the mold was not really an option.

Description:

• Process tolerance: +/-0.01mm
• Manufacturing Lead time: 14 days
• Delivery lead time: 3 days
• Size: 126X136X56mm
• Material: 1.2343
• Hardness: 52+2 HRc
• ISO 9001 certified

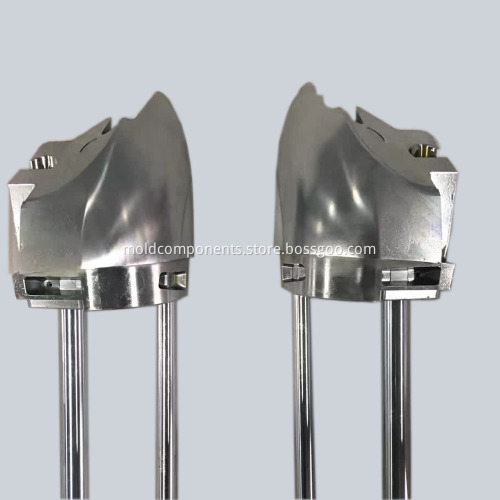

• CNC Machining Service For Mold Lifter Mechanism
• HS code: 84807190
