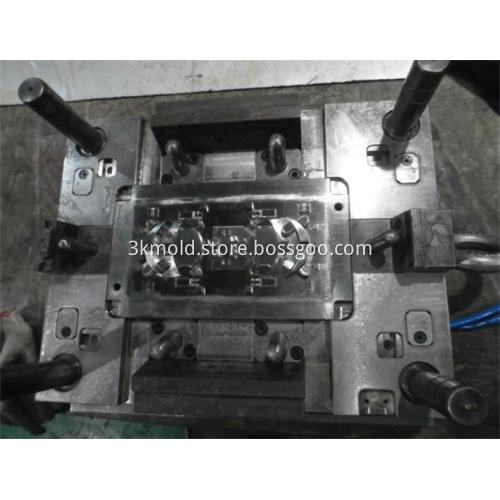

PCB Panel Injection Tooling
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 49 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
3K Mold`s toolmaking facilities include CNC machining centers; CNC EDM, welding and wire cut facilities as well as a range of general toolmaking equipment. The extensive facilities and experienced skilled tradesmen, enable manufacture of quality injection moulds, and die casting moulds. Tool design and tool steel selection is considered in the framework of the tooling and product application to ensure optimum tool performance and life.
Tooling manufacture is efficient and precise with CAD files being downloaded to CNC machine programmers. From there, sophisticated CAM software is used to generate tool-cutting paths. CAM programs are fed directly to CNC machining centers and lathes.
Job flow in the toolroom is directed and monitored to ensure tool manufacture is undertaken according to design, and within committed delivery lead-times.
| Project Information | ||
| Product Description | Part Name | PCB Panel Injection Tooling |
| Part Material | PC | |
| Part Size(mm) | 210x104x9mm | |
| Mould Description | Cavity Insert Material | 1.2767 HRC 48-52 |
| Core Insert Material | 1.2767 HRC 48-52 | |
| Slider Insert Material | 1.2767 HRC 48-52 | |
| Mould Cavities | 1x1 | |
| Mold parts Standard | Hasco | |
| Mold Size | 560x490x680mm | |
| Mold weight | 364kg | |
| Lead time | 7 weeks | |
| Mould Life Time (Shots) | 1000K | |
| Mould Type | Export to Germany | |
| Runner Description | Synventive single hot nozzle | |
| Injection Gate Type | Tip gate | |
| Ejection System | ejector pin | |
| Cycle time | 40S | |
| Slide Qty. | 4 | |
| Lifter Qty. | 0 | |
| Injection moulding machine | 200T |
3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
