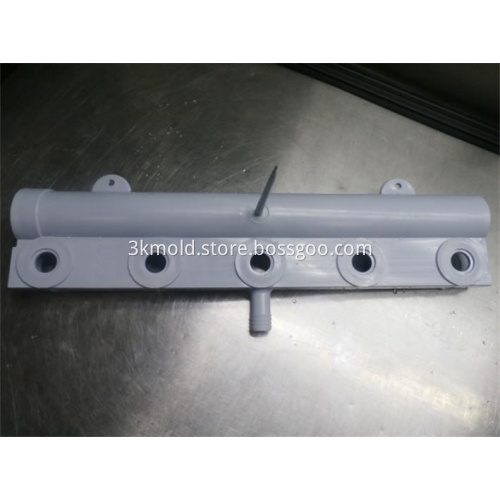

Industrial Pipe Plastic Injection Tool
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 60 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
3K MOLD specializes in mould making for injection molding of highly engineered resins, such as Carbon and glass filled Ultem, Stainless Steel filled PC/ABS and many more. We produce your products in plastic or metal and in virtually any geometric or multi-contoured shape. We provide complete design services from idea, to prototype, to production mold, to mass production, with superior quality.
For large product mold making requirements, contact us with your product dimensions and other request. We will be happy to review your product for compatibility with our mold making equipment.
| Project Information | ||
| Product Description | Part Name | Industrial Pipe Plastic Injection Tool |
| Part Material | PP | |
| Part Size(mm) | 204x587x76 | |
| Mould Description | Cavity Insert Material | P20 HRC28-32 |
| Core Insert Material | P20 HRC28-32 | |
| Slider Insert Material | 738H +nitried | |
| Mould Cavities | 1 | |
| Mold parts Standard | DME | |
| Mold Size | 650x900x786mm | |
| Mold weight | 2500kg | |
| Lead time | 10 weeks | |
| Mould Life Time (Shots) | 500,000 | |
| Mould Type | Export to USA | |
| Runner Description | Cold runner | |
| Injection Gate Type | 1 sprue direct to part | |
| Ejection System | Ejector pin | |
| Cycle time | 100 S | |
| Slide Qty. | 3 | |
| Lifter Qty. | 0 | |
| Injection moulding machine | 700T |
3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
