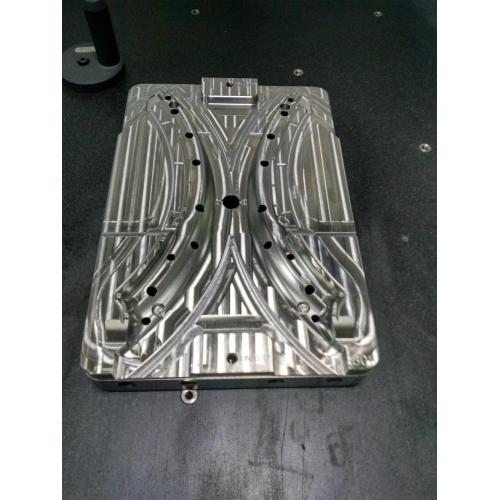

Metal insert and double needle injection mold
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 42 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
Besides assisting our customers in designing the plastic products they require and assisting in material selection, we offer engineering services for the design and fabrication of production tooling.
Our experienced designers work closely with customers to design plastic injection molds that meet cycle life and part requirements. Our design process quickly identifies molding feasibility and cost
drivers to ensure benefits and savings for our customers. We offer full 3D tool design capability and our designers use software such as SolidWorks to design tooling required by customers.
| Project Information | ||
| Product Description | Part Name | Plastic Injection Mould |
| Part Material | PC | |
| Part Size(mm) | 550*400*420 | |
| Mould Description | Cavity Insert Material |
420H HRC28-32 |
| Core Insert Material |
420H HRC28-32 |
|
| Slider Insert Material |
|
|
| Mould Cavities | 1+1 | |
| Mold parts Standard | DME | |
| Mould Life Time (Shots) | 100,000 | |
| Mould Type | Formal mold | |
| Runner Description | Cold runner | |
| Injection Gate Type | Edge gate | |
| Ejection System | Ejector pin | |
| Slide Qty. | 0 | |
| Lifter Qty. | 0 | |
| Injection moulding machine | 160T |
Metal insert and double needle injection mold 3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center:
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
