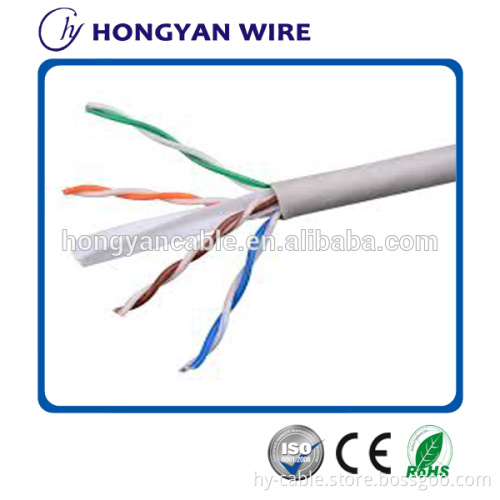

Network Cable fire resistant utp cat6 cable
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
Description
Category 6 Cable(Cat 6) is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second(Gigabit Ethernet). It is also used to carry other signals such as telephony and video.
Standards
ISO/IEC11801
ANSI/EIA/TIA-568-B.2-1
Conductor
Class 1 solid plain copper
Insulation
HDPE(High Density Polyethylene)
Jacket
PVC(Polyvinyl Chloride)
LSZH(Low Smoke Zero Halogen)
Core Identification
Blue, White/Blue;
Orange, White/Orange
Green, White/Green
Brown, White/Brown
Specification
|
Conductor |
Thick. of Insulation mm |
Nominal O.D. mm |
Nominal Weight Kgs/305m box |
|
23AWG |
1.03±0.005 |
6.3±0.2 |
13 |
Electrical Characteristics
|
Max. Conductor Resistance: 7.0Ω/100m |
Min. Insulation Elongation: 300% |
||||||
|
Max. Resistance Unbalance: 2.3% |
Min. Propagation Velocity: 0.622C m/s |
||||||
|
Min. Conductor Elongation: 20% |
Characteristic Impedance: 100±15Ω |
||||||
|
Min. Insulation Resistance: 7000MΩ/km |
|
||||||
|
Frequency MHz |
Attenuation dB/100m |
NEXT dB |
PS-NEXT dB |
RL dB |
ELFEXT dB |
PS-ELFEXT dB |
|
|
1 |
1.9 |
74.0 |
72.3 |
20.0 |
68.0 |
65.0 |
|
|
4 |
3.7 |
65.0 |
63.3 |
23.0 |
56.0 |
53.0 |
|
|
8 |
5.3 |
60.7 |
48.8 |
24.5 |
49.9 |
46.9 |
|
|
10 |
5.9 |
59.0 |
57.3 |
25.0 |
48.0 |
45.0 |
|
|
16 |
7.5 |
56.0 |
54.2 |
25.0 |
43.9 |
40.9 |
|
|
20 |
8.4 |
55.0 |
52.6 |
25.0 |
42.0 |
39.0 |
|
|
25 |
9.5 |
53.3 |
41.3 |
24.3 |
40.0 |
37.0 |
|
|
31.25 |
10.6 |
52.0 |
49.9 |
23.6 |
38.1 |
35.0 |
|
|
62.50 |
15.4 |
47.0 |
45.4 |
21.5 |
32.1 |
29.1 |
|
|
100 |
19.8 |
44.0 |
42.3 |
20.1 |
28.0 |
25.0 |
|
|
200 |
29.0 |
40.0 |
37.8 |
18.0 |
22.0 |
19.0 |
|
|
250 |
32.8 |
38.0 |
36.3 |
17.3 |
20.0 |
17.0 |
|
Products view
Company Information
Shenzhen Hongyan Wire Industry Co., Ltd established in 1999 and is located in Maling Industrial Park, Longgang, Shenzhen, China. We are a professional designer and manufacturer in wires and cables with ISO9001, having two senior cable engineers, over twenty managing and well-trained workers.
Our main products: Cat5e UTP/FTP/SFTP Lan Cable, CAT6 UTP/FTP/SFTP Lan Cable, Electrical Cable, Power Cable, PVC Insulated Cable, XLPE Insulated Power Cable, Steel Tape Armor Cable, Control Cable, Telephone Cable, Coaxial Cable, Fire-resistant Cable and Flame-retardant Cable and so on.
We are strictly according to the international, national and industry standard and have the national industrial production permit and China Compulsory Certification (CCC) and Flame-retardant and Fire-resistant and ISO9001 certifications. And our products are got the quality insurance commitment by China Pacific insurance company. We won "Customer Satisfaction Products of Guangdong Province", "China Quality Credit Enterprise", "Chinese famous Brand" honorable certificates.
- Factory view
- Our certificate
Packaging & Shipping
packaging detail:
- 305m/roll
- 500m/roll
- 1000m/roll
- eazy pull box packed
- Wooden drum packed
- Pictures
delivery detail:2 weeks after received your deposit
