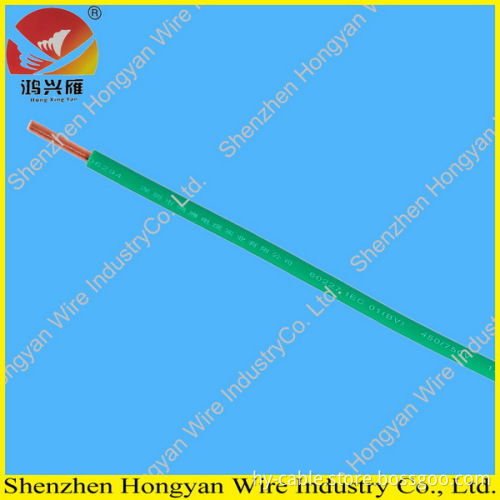

single core 1.5mm pvc insulated electric cable

copper conductor single core 1.5mm pvc insulated electric cable

PVC insulated, non-sheathed, 450/750V, general purpose cable

Application: electric power, lighting and internal wiring

1. Structure drawing          Specification Data for BV,Fire Resistance BV Standard: GB/T 5023.3, IEC 60227-3):

   Product Code	Nominal cross-sectional  area of conductor	Class of conductor	Thickness of insulation Specified value	Mean overall diameter
   				Lower limit	Upper limit
   	mm2		mm	mm	mm
   HY-GB-BV-1C1.5	1X1.5	1	0.7	2.6	3.2
   HY-GB-BV-1C1.5-b	1X1.5	2	0.7	2.7	3.3
   HY-GB-BV-1C2.5	1X2.5	1	0.8	3.2	3.9
   HY-GB-BV-1C2.5-b	1X2.5	2	0.8	3.3	4.0
   HY-GB-BV-1C4.0	1X4.0	1	0.8	3.6	4.4
   HY-GB-BV-1C4.0-b	1X4.0	2	0.8	3.8	4.6
   HY-GB-BV-1C6.0	1X6.0	1	0.8	4.1	5.0
   HY-GB-BV-1C6.0-b	1X6.0	2	0.8	4.3	5.2
   HY-GB-BV-1C10.0	1X10	1	1.0	5.3	6.4
   HY-GB-BV-1C10.0-b	1X10	2	1.0	5.6	6.7
   HY-GB-BV-1C16	1X16	2	1.0	6.4	7.8
   HY-GB-BV-1C25	1X25	2	1.2	8.1	9.7
   HY-GB-BV-1C35	1X35	2	1.2	9.0	10.9
   HY-GB-BV-1C50	1X50	2	1.4	10.6	12.8
   HY-GB-BV-1C70	1X70	2	1.4	12.1	14.6
   HY-GB-BV-1C95	1X95	2	1.6	14.1	17.1
   HY-GB-BV-1C120	1X120	2	1.6	15.6	18.8
   HY-GB-BV-1C150	1X150	2	1.8	17.3	20.9
   HY-GB-BV-1C185	1X185	2	2.0	19.3	23.3
   HY-GB-BV-1C240	1X240	2	2.2	22.0	26.6
   HY-GB-BV-1C300	1X300	2	2.4	24.5	29.6
   HY-GB-BV-1C400	1X400	2	2.6	27.5	33.2

   1. Operating Characteristics:
   2. Working Temperature: 0oC ~ 70oC
   3. Min. Bending Radius: 4D(O.D. less than 25mm), 6D(O.D. more than and including 25mm)




PVC insulated, non-sheathed, 300/500V, internal wiring cable

1. Application: internal wiring
2. Structure drawing       Specification Data for BV,Fire Resistance BV(Standard: GB/T 5023.3, IEC 60227-3):

1. Operating Characteristics:
2. Working Temperature: 0oC ~ 70oC
3. Min. Bending Radius: 4D(O.D. less than 25mm), 6D(O.D. more than and including 25mm)
