2015 Top Quality single core 2.5mm PVC Insulated Electric Wire
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|

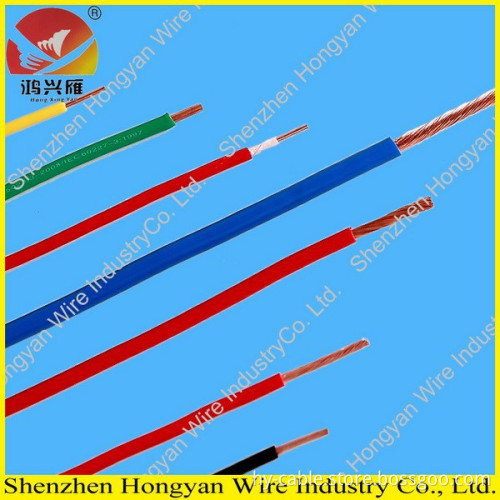

2015 Top Quality single core 2.5mm PVC Insulated Electric Wire
PVC insulated, non-sheathed, 450/750V, general purpose cable
Application: electric power, lighting and internal wiring
-
Structure drawing
Specification Data for BV,Fire Resistance BV Standard: GB/T 5023.3, IEC 60227-3):
Product Code
Nominal cross-sectional
area of conductorClass of conductor
Thickness of insulation
Specified valueMean overall diameter
Lower limit
Upper limit
mm2
mm
mm
mm
HY-GB-BV-1C1.5
1X1.5
1
0.7
2.6
3.2
HY-GB-BV-1C1.5-b
1X1.5
2
0.7
2.7
3.3
HY-GB-BV-1C2.5
1X2.5
1
0.8
3.2
3.9
HY-GB-BV-1C2.5-b
1X2.5
2
0.8
3.3
4.0
HY-GB-BV-1C4.0
1X4.0
1
0.8
3.6
4.4
HY-GB-BV-1C4.0-b
1X4.0
2
0.8
3.8
4.6
HY-GB-BV-1C6.0
1X6.0
1
0.8
4.1
5.0
HY-GB-BV-1C6.0-b
1X6.0
2
0.8
4.3
5.2
HY-GB-BV-1C10.0
1X10
1
1.0
5.3
6.4
HY-GB-BV-1C10.0-b
1X10
2
1.0
5.6
6.7
HY-GB-BV-1C16
1X16
2
1.0
6.4
7.8
HY-GB-BV-1C25
1X25
2
1.2
8.1
9.7
HY-GB-BV-1C35
1X35
2
1.2
9.0
10.9
HY-GB-BV-1C50
1X50
2
1.4
10.6
12.8
HY-GB-BV-1C70
1X70
2
1.4
12.1
14.6
HY-GB-BV-1C95
1X95
2
1.6
14.1
17.1
HY-GB-BV-1C120
1X120
2
1.6
15.6
18.8
HY-GB-BV-1C150
1X150
2
1.8
17.3
20.9
HY-GB-BV-1C185
1X185
2
2.0
19.3
23.3
HY-GB-BV-1C240
1X240
2
2.2
22.0
26.6
HY-GB-BV-1C300
1X300
2
2.4
24.5
29.6
HY-GB-BV-1C400
1X400
2
2.6
27.5
33.2
- Operating Characteristics:
- Working Temperature: 0oC ~ 70oC
- Min. Bending Radius: 4D(O.D. less than 25mm), 6D(O.D. more than and including 25mm)
