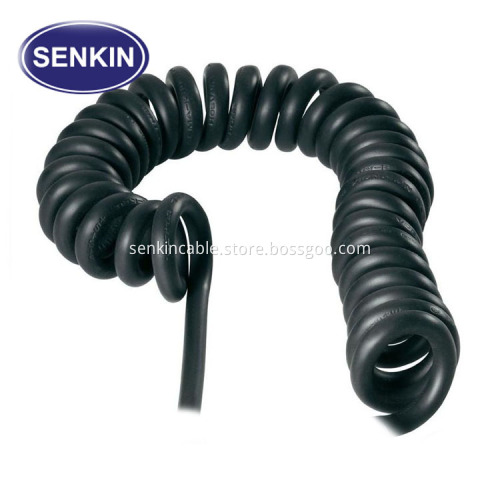

Flexible 3 Core 24/26/32AWG Pur Spiral Cable
- Payment Type:
- T/T, Western Union, Cash
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 2000 Piece/Pieces
- Min. Order:
- 2000 Piece/Pieces
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Yantian Shenzhen, Shekou Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,Guangdong |
|---|---|
| Productivity: | 500000 pcs/Month |
| Supply Ability: | 500000 pcs/Month |
| Payment Type: | T/T,Western Union,Cash |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | TS16949;ISO13485;ISO9001 |
| HS Code: | 85441100 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Yantian Shenzhen,Shekou Shenzhen |
This model of Flexible 3 Core 24/26/32AWG Pur Spiral Cable is efficient and endurable , economical and practical for client.
The Flexible 3 Core 24/26/32AWG Pur Spiral Cable we produced is characterized by its high quality ,compact-sized, environmental and it` also easy-to-learn and easy-to-assemble with many kinds of connector and equipment.
Flexible 3 Core 24/26/32AWG Pur Spiral Cable
- Flexible Spiral Cable
- 3 Core Pur Spiral Cable
-
24/26/32AWG
Main Industry Application Products
- Bone Conduction Transduer
- Speed Sensor;Angle Snesor;Temperture Sensor;Urea Sensor
- CNC Equipment Robot Arm
- AED;Electrocardiograph
Pur Spiral CableDescription of Senkin Flexible 3 Core 24/26/32AWG PUR Spiral Cable
- Conductor Structure: See Common Conductor Structure Table Or Customization
- Insulation : TPEE/FEP/MPPO/TPV/PP/HDPE
- Sheath Material : General With Polyester Type TPU or Polyether Type TPU
- Working Temperature : -60 Degree---125 Degree
- Production Range: Standard Section 0.03-6 Square Meter Or Customization
- Multiple Conductors: 1-37 Conductors Or Customization
Feature Of Flexible 3 Core 24/26/32AWG Pur Spiral Cable
- Flexibility
- Elasticity (Spring Elongation Length Can Reach The Original Length Of 3 to 10 Times)
- Cold Resistance
- Flame Retardant
- Oil Resistance
- Abrasion Resistance.
Details HD Photo Of Flexible 3 Core 24/26/32AWG Pur Spiral Cable
The Application Of Our Flexible 3 Core 24/26/32AWG Pur Spiral Cable
Spiral Cable's Application On CNC Equipment&Interphone:
Base On The Features Of Our Spiral Cable--Flexibility&Oil Resistance,Many Industry Choose Our Flexible 3 Core 24/26/32AWG Pur Spiral Cable
Spiral Cable's Application On Medical Equipmet:
Base On The Features Of Our Spiral Cable--Flexibility&Oil Resistance,Medical Industry Choose Our Flexible 3 Core 24/26/32AWG Pur Spiral Cable
Specification Data Sheet Of Our Nomal Flexible 3 Core 24/26/32AWG Pur Spiral Cable
|
P/N |
Normal Spec. | Twisting OD | Resosyamce/KM | Standard OD | Conductor(Option) | Filling(Option) |
| 10 | 105/0.2541/2.588 | 2.588 | <5 | 3.2 |
99.99% Copper Tinned Copper Varnished Wire Sliver-Plated Copper Nickel Copper |
Kevlar/Nylon |
| 12 | 65/0.254 1/2.05 | 2.05 | <7 | 2.65 | Kevlar/Nylon | |
| 14 | 41/0.254 1/1.63 | 1.63 | <10 | 2.2 | Kevlar/Nylon | |
| 16 | 26/0.254 1/1.29 | 1.29 | <15 | 1.9 | Kevlar/Nylon | |
| 18 | 41/0.16 165/0.08 105/0.11 | 1.02 | <25 | 1.6 | Kevlar/Nylon | |
| 20 | 20/0.16 110/0.08 70/0.1 | 0.81 | <35 | 1.4 | Kevlar/Nylon | |
| 22 | 17/0.16 65/0.08 41/0.1 | 0.64 | <55 | 1.2 | Kevlar/Nylon | |
| 24 | 26/0.1 41/0.08 120/0.05 | 0.58 | <90 | 1 | Kevlar/Nylon | |
| 26 | 7/0.16 24/0.08 65/0.05 | 0.48 | <125 | 0.9 | Kevlar/Nylon | |
| 28 | 11/0.1 19/0.08 45/0.05 | 0.38 | <210 | 0.85 | Kevlar/Nylon | |
| 30 | 7/0.1 19/0.06 28/0.05 1/0.3 | 0.3 | <320 | 0.7 | Kevlar/Nylon | |
| 32 | 1/0.254 7/0.08 18/0.05 | 0.2 | <500 | 0.55 | Kevlar/Nylon | |
| 34 | 1/0.2 7/0.06 | 0.2 | <560 | 0.45 | Kevlar/Nylon | |
| 36 | 1/0.16 7/0.05 | 0.16 | <870 | Kevlar/Nylon | ||
| 38 | 1/0.127 7/0.04 | 0.12 | <1400 | Kevlar/Nylon | ||
| 40 | 1/0.08 | 0.08 | <3500 |
Kevlar/Nylon |
Specification Data Sheet Of Our High Temperature Resistant Flexible 3 Core 24/26/32AWG Pur Spiral Cable
| P/N | Normal Spec. | Twisting OD | Resosyamce/KM | Standard OD | Conductor(Option) | Filling(Option) |
| 10 | 105/0.2541/2.588 | 2.588 | <5 | 3.2 |
99.99% Copper Tinned Copper Sliver-Plated Copper Nickel Copper |
NO |
| 12 | 65/0.254 1/2.05 | 2.05 | <7 | 2.65 | NO | |
| 14 | 41/0.254 1/1.63 | 1.63 | <10 | 2.2 | NO | |
| 16 | 26/0.254 1/1.29 | 1.29 | <15 | 1.9 | NO | |
| 18 | 41/0.16 165/0.08 105/0.11 | 1.02 | <25 | 1.6 | NO | |
| 20 | 20/0.16 110/0.08 70/0.1 | 0.81 | <35 | 1.4 | NO | |
| 22 | 17/0.16 65/0.08 41/0.1 | 0.64 | <55 | 1.2 | NO | |
| 24 | 26/0.1 41/0.08 120/0.05 | 0.58 | <90 | 1 | NO | |
| 26 | 7/0.16 24/0.08 65/0.05 | 0.48 | <125 | 0.9 | NO | |
| 28 | 11/0.1 19/0.08 45/0.05 | 0.38 | <210 | 0.85 | NO | |
| 30 | 7/0.1 19/0.06 28/0.05 1/0.3 | 0.3 | <320 | 0.7 | NO | |
| 32 | 1/0.254 7/0.08 18/0.05 | 0.2 | <500 | 0.55 | NO | |
| 34 | 1/0.2 7/0.06 | 0.2 | <560 | 0.45 | NO | |
| 36 | 1/0.16 7/0.05 | 0.16 | <870 | NO | ||
| 38 | 1/0.127 7/0.04 | 0.12 | <1400 | NO | ||
| 40 | 1/0.08 | 0.08 | <3500 |
NO |
Senkin Company's Info:
Shenzhen SenKin Electronic Co.,Ltd. has more than 10 years of experience in manufacturing cable and our major products are Silicone Cable/PTEE Cable/PUR /TPU Cable which used in the Auto,Sensors,High temperature resistance which use in Special Industry,Military Industry,Medical Industry,Robot Industry,Aerospace Industry with the monthly turnout of 500,000 meters.We handle tooling,production and packaging with the use of our eight production lines,supported by 150 staff members in our 2500 sqm factory.Our resources including production equipment and testing facilities from Taiwan and Japan enable us to turn out up to 500,000 meters monthly and provide major professional OEM service.We are always concentrate on what your request,could make the very professional suggestion and useful solution for your cable project.
Flexible 3 Core 24/26/32AWG Pur Spiral Cable
FAQ:
Q: Where Is Your Factory Located In?
A: Our Factory Located In Shenzhen City,Near to Shekou Port or Yantian Port
Q: What Can You Do For Client?
A: 1. Provide Very Useful And Professional Solution For Client's Request
2. OEM According With Client's Drawing or Design
3. 100% Quality Inspect
Q: What Is Your Payment Way?
A: We Accept T/T,Cash,Westerm Union And L/C
Q: What's The Business Step With Your Factroy?
A: Pls Feel Your Free Time To See The Below Info:
Our Shipping Service:
We provide shipping by sea,shipping by air,shipping by train,shipping by truck and express.
All the way will be choosed by client.
All Details if you cannot understand very well pls feel your free time to contact the sales man online by Skype or by Email.
