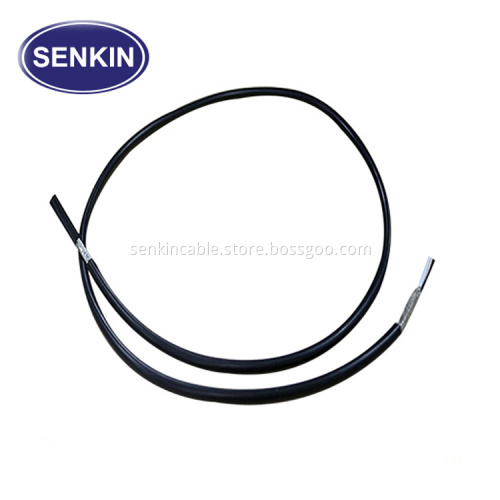

LowVoltage MultiCores 26AWG Tinned Copper TPU Cable

Get Latest Price

Payment Type:: T/T, Western Union, Cash

Incoterm:: FOB, CIF, EXW

Min. Order:: 10000 Meter

Min. Order:: 10000 Meter

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air, Express

Port:: Yantian Shenzhen, Shekou Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen,Guangdong
Productivity:	5000000 M/Month
Supply Ability:	500000 M/Week
Payment Type:	T/T,Western Union,Cash
Incoterm:	FOB,CIF,EXW
Certificate:	TS16949;ISO13485;ISO9001
HS Code:	85441100
Transportation:	Ocean,Land,Air,Express
Port:	Yantian Shenzhen,Shekou Shenzhen

Product Description

99.99% Oxygen Free Copper (OFC) Conductors. Compatible with Bare Wire Connectors, Suit for Banana Plugs, Spade Tips or Bent Pin Connectors

UL Safety Certified, NEC 725 Class 2 Rated for Home and Commercial Use

Sequentially Marked Every Two Feet in Descending Order From the Start of the Reel to the Core

LowVoltage MultiCores 26AWG Tinned Copper TPU Cable

LowVoltage TPU Cable
MultiCores Tinned Copper Cable
26AWG TPU Cable

Main Industry Application Products

Bone Conduction Transduer
Speed Sensor ; Angle Snesor ; Temperture Sensor ; Urea Sensor
CNC Equipment Robot Arm
AED ; Electrocardiograph

Description of Senkin LowVoltage MultiCores 26AWG Tinned Copper TPU Cable

Conductor structure: see common conductor structure table or customization
Insulation : TPEE/FEP/MPPO/TPV/PP/HDPE
Sheath material : general with polyester type TPU or polyether type TPU
Working temperature : -60 ℃--250 ℃
Production range: standard section 0.03-6 square meter or customization
Multiple conductors: 1-37 conductors or customization

Feature Of LowVoltage MultiCores 26AWG Tinned Copper TPU Cable

Flexibility
Elasticity (Spring Elongation Length Can Reach The Original Length Of 3 to 10 Times)
Cold Resistance
Flame Retardant
Oil Resistance
Abrasion Resistance.

Details HD Photo Of LowVoltage MultiCores 26AWG Tinned Copper TPU Cable

SK-0003R

MultiCores Tinned Copper Cable

26AWG TPU Cable

LowVoltage MultiCores 26AWG Tinned Copper TPU Cable

The Application Of Our LowVoltage MultiCores 26AWG Tinned Copper TPU Cable

TPU/PUR Cable's Application On CNC Equipment,Sencor And Connector Such Like Those Connector Production By Lemo,ODU:

Base On The Features Of Our PUR/TPU Cable--Flexibility&Oil Resistance,Many Industry Choose Our LowVoltage MultiCores 26AWG Tinned Copper TPU Cable

LowVoltage MultiCores 26AWG Tinned Copper TPU Cable

TPU/PUR Cable's Application On Medical Equipmet:

Base On The Features Of Our PUR/TPU Cable--Flexibility&Oil Resistance,Medical Industry Choose Our LowVoltage MultiCores 26AWG Tinned Copper TPU Cable

LowVoltage MultiCores 26AWG Tinned Copper TPU Cable

Specification Data Sheet Of Our Nomal LowVoltage MultiCores 26AWG Tinned Copper TPU Cable

P/N	Normal Spec.	Twisting OD	Resosyamce/KM	Standard OD	Conductor(Option)	Filling(Option)
10	105/0.2541/2.588	2.588	<5	3.2	99.99% Copper Tinned Copper Varnished Wire Sliver-Plated Copper Nickel Copper	Kevlar/Nylon
12	65/0.254 1/2.05	2.05	<7	2.65		Kevlar/Nylon
14	41/0.254 1/1.63	1.63	<10	2.2		Kevlar/Nylon
16	26/0.254 1/1.29	1.29	<15	1.9		Kevlar/Nylon
18	41/0.16 165/0.08 105/0.11	1.02	<25	1.6		Kevlar/Nylon
20	20/0.16 110/0.08 70/0.1	0.81	<35	1.4		Kevlar/Nylon
22	17/0.16 65/0.08 41/0.1	0.64	<55	1.2		Kevlar/Nylon
24	26/0.1 41/0.08 120/0.05	0.58	<90	1		Kevlar/Nylon
26	7/0.16 24/0.08 65/0.05	0.48	<125	0.9		Kevlar/Nylon
28	11/0.1 19/0.08 45/0.05	0.38	<210	0.85		Kevlar/Nylon
30	7/0.1 19/0.06 28/0.05 1/0.3	0.3	<320	0.7		Kevlar/Nylon
32	1/0.254 7/0.08 18/0.05	0.2	<500	0.55		Kevlar/Nylon
34	1/0.2 7/0.06	0.2	<560	0.45		Kevlar/Nylon
36	1/0.16 7/0.05	0.16	<870			Kevlar/Nylon
38	1/0.127 7/0.04	0.12	<1400			Kevlar/Nylon
40	1/0.08	0.08	<3500			Kevlar/Nylon

Specification Data Sheet Of Our High Temperature Resistant LowVoltage MultiCores 26AWG Tinned Copper TPU Cable

P/N	Normal Spec.	Twisting OD	Resosyamce/KM	Standard OD	Conductor(Option)	Filling(Option)
10	105/0.2541/2.588	2.588	<5	3.2	99.99% Copper Tinned Copper Sliver-Plated Copper Nickel Copper	NO
12	65/0.254 1/2.05	2.05	<7	2.65		NO
14	41/0.254 1/1.63	1.63	<10	2.2		NO
16	26/0.254 1/1.29	1.29	<15	1.9		NO
18	41/0.16 165/0.08 105/0.11	1.02	<25	1.6		NO
20	20/0.16 110/0.08 70/0.1	0.81	<35	1.4		NO
22	17/0.16 65/0.08 41/0.1	0.64	<55	1.2		NO
24	26/0.1 41/0.08 120/0.05	0.58	<90	1		NO
26	7/0.16 24/0.08 65/0.05	0.48	<125	0.9		NO
28	11/0.1 19/0.08 45/0.05	0.38	<210	0.85		NO
30	7/0.1 19/0.06 28/0.05 1/0.3	0.3	<320	0.7		NO
32	1/0.254 7/0.08 18/0.05	0.2	<500	0.55		NO
34	1/0.2 7/0.06	0.2	<560	0.45		NO
36	1/0.16 7/0.05	0.16	<870			NO
38	1/0.127 7/0.04	0.12	<1400			NO
40	1/0.08	0.08	<3500			NO

Senkin Company's Info:

Shenzhen SenKin Electronic Co.,Ltd. has more than 10 years of experience in manufacturing cable and our major products are Silicone Cable/PTEE Cable/PUR /TPU Cable which used in the Auto,Sensors,High temperature resistance which use in Special Industry,Military Industry,Medical Industry,Robot Industry,Aerospace Industry with the monthly turnout of 500,000 meters.

We handle tooling,production and packaging with the use of our eight production lines,supported by 150 staff members in our 2500 sqm factory.Our resources including production equipment and testing facilities from Taiwan and Japan enable us to turn out up to 500,000 meters monthly and provide major professional OEM service.We are always concentrate on what your request,could make the very professional suggestion and useful solution for your cable project.

LowVoltage MultiCores 26AWG Tinned Copper TPU Cable
