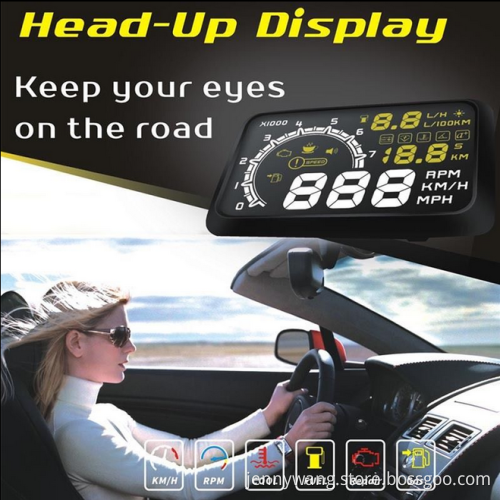

W02 Car HUD Head Up Display

     This HUD is designed to reflect your vehicles computer information onto your windshield offering a safer driving experience day to day as well as more importantly at high speeds and during night driving. As it removes the need for the driver to dip their head to view the instrument cluster. Installing this unit correctly will enable you to more effectively monitor your speed, this is helpful for novice drivers as well as experienced drivers in potentially avoiding speeding infringements.

HUD Main Futures

1.Plug and play. HUD can auto adapt to vehicle type which in line with OBDII or EUOBD(On-Board Diagnostic System).

     2.Comprehensive display. HUD can display many parameters at the same time as follows, vehicle speed, engine speed, water temperature (voltage, throttle valve position, ignition advance angle, time of 100 km acceleration),fuel consumption, mileage, low fuel tips, engine failure.

    3.Diversiform display mode. Driver can chose normal display mode, high- speed display mode and automatic display mode.

    4.Free switch. Km and mile can be switched freely to meet the need of inch auto meter.

    5.Suitable size. The display area is 5.5 inches which is very clear for driver to read data.

    6.Automatic power on and off. Starting with the vehicle starting, stopping with the vehicle stopping to protect the vehicle`s battery. Moreover, we pre- serve the hand switch function to control the HUD.

    7.Flexible alarm mode. HUD can offer single-stage and four-stage overspeed alarm modes to choose to make driving safer.

    8.Engine speed alarm. It contributes to shift gear in time to save fuel also has significance to new driver.

    9.Flexible brightness adjustment. The brightness can be adjusted automatically or manually to reach the best state which is in harmony with the environment.

Function Instructions

1.    Parameter value: show the value with the units of kilometers, miles and engine speed.

2.    OBDII port: connect the car and HUD.

3.    Fuel icon: flash when the fuel is not enough to drive 100km.

4.    Engine failure: flash when vehicle`s engine has problems.

5.    Engine speed: show the state of engine speed.

6.    Engine speed icon: indicate the parameter value of engine with units of 1000r. It will flash when engine speed is alarming.

7.   Speed alarm: flash when speed exceeds the preset values.

8.   Rest tips: flash when drive continuously for more than 4 hours with HUD starting.

9.   Sound switch: light when voice alarm is opened.

10.  Fuel consumption icon: show fuel consumption is calculating.

11.  Fuel parameter value: show the consumption of fuel in recent driving.

12.  Dial button: multi-function switch, you can dial to left or right, you can enter into setting mode by long press. And also has the ability to decrease or increase fuel.

13.  Fuel consumption per hour: show oil mass consumption per hour in driving.

14.  Light sensor: sense the external light intensity and adjust the HUD`s brightness to adapt to environment automatically.

15.  Fuel consumption per 100km: show the fuel consumption per 100km in driving.

16.  Voltage, throttle valve, water temperature, ignition advance angle and acceleration per 100km: voltage shows the vehicle`s voltage; throttle valve shows the size of itself; water temperature shows the temperature of vehicle cooling fluid; ignition advance angle shows the angle of twist in firing, it`s also a mark of engine`s efficiency. Acceleration per 100km shows performance of the vehicle`s acceleration per 100km.

17. Seconds: show the unit of acceleration per 100km.

18. Parameter value: show parameter value of Voltage, throttle valve, water temperature, ignition advance angle and acceleration per 100km.

19. Mileage: light when the fuel only sustains 100km.

20. Reel per minute: show the unit of engine speed if you multiply the parameter value with 10.

21. Kilometer per hour: show the unit of speed.

22. Mile per hour: show the unit of speed.

Company Information

Shenzhen Wins Novelty Co.,Ltd is the factory for car safety products.We mainly produce car Head Up Display. Our advantages are

1.Three-years warranty suppport.

2.We have patent.

3.All our products have CE,FCC,ROHs certificates.

4.All our products can be custom-made.

     Wins Novelty,a professional OEM manufacture for Car Electronics and also partner with US Walmart,AU Repco..since 2011.

    With 8 years of export experience along with excellent quality, superior after-market services and competitive prices, we won numerous customers' trust and support.

They all with CE,RoHS,FCC and a 3 years warranty.

OEM/ODM is available,with a MOQ of 500pcs.

More details pls call: 86-17665477760(whatsapp) or send me email: esther@wins-novelty.com
