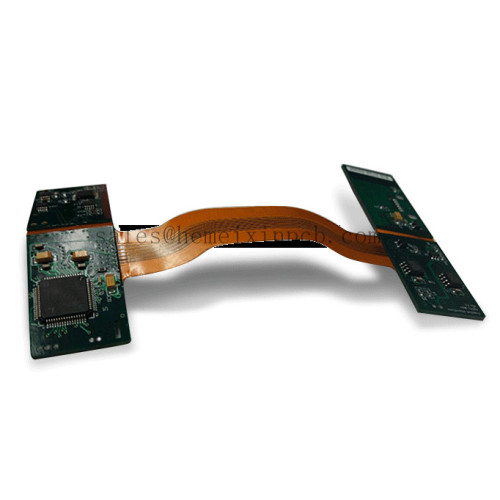

Rigid-Flex Circuit Boards assembly

Flex PCB, Rigid-Flex Circuit Boards and Rigiflex pcb assembly, 1-5 day quick turn guaranteed delivery, offer complex PCB prototypes and full PCB manufacturing services manufacturing for military and commercial industries.

HemeixinPCB has created the option of checking the required impedance on the customer's circuit board, so as to modify the circuit board, or the tracks and the layer structure if necessary. The impedance is largely determined by the track geometry, the structure of the layers and the dielectric constant (Er) of the materials used.

After making the circuit board, the impedances are checked and recorded. The results of the measurements are available on request at any time.
