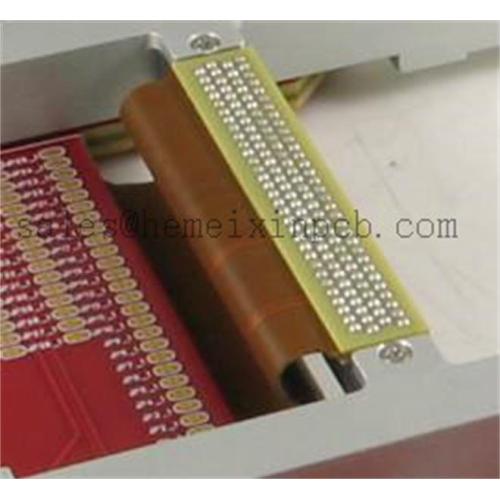

Prototype Rigid Flex Circuits

Rigid Flex Circuits marry the best of both worlds- the rigid PCB and the flex circuit. With some of themost advanced technology, today's rigid flex circuits and semiflex pcb assembly range from 4 layers to 20+ layers. In military, medical, industrial and consumer industries, this technology has been embraced as a proven, reliable part of the entire electronics assembly package.

HemeixinPCB has created the option of checking the required impedance on the customer's circuit board, so as to modify the circuit board, or the tracks and the layer structure if necessary. The impedance is largely determined by the track geometry, the structure of the layers and the dielectric constant (Er) of the materials used.

After making the circuit board, the impedances are checked and recorded. The results of the measurements are available on request at any time.
