Linsn Led Display Controller-the brand is the best seller in the market of led display screen. Due to ease of use, nearly every technician knows how to operate Linsn Led Screen Sending Card. At least one sending card is required for each led display. And for TS802 Led Screen Panel Sending Card-that is a standard model for led display screens.

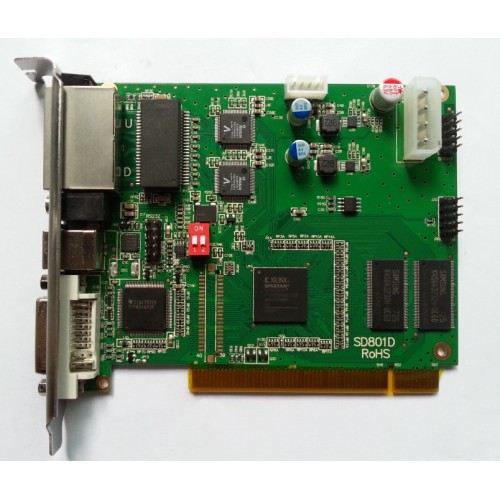

TS802D

Product Type :Controller

Input Resolution :

640*480  800*600  1024*768  1280*768  1280*800 1280*1024

1440*900  1440*1080  1600*1200

Capacity :1.3 million pixels

Supply Voltage :AC-100-240V-50/60HZ

Control Method :USB Interface

Video Interface :DVI

Audio Interface :3.5mm

Viedo Format :RGB

Output Interface :2 Ethernet ports

Bit Depth Of Video Resource :8bit

Light Sensor Interface :1

Certification :CE.RoHS.FCC.EAC.IC

1. 802 sending card including full-color sending card TS802 and dual-color sending card DS802.

    Full-color sending card supports full-color, dual-color and single color led display

    Dual-color sending card supports dual-color and single color led display.

2. 802 sending card max supports 2048*640

3. Supporting display mode: 640*480  800*600  1024*768  1280*768  1280*800 1280*1024

    1440*900  1440*1080  1600*1200

    1680*1050  1728*1296  1920*1080  1920*1200  2048*1152  2048*1280

4. Audio Transmission Function802 sending card sends audio data using network cable, and Function

    board outputs audio signals to the display. Double 24bits 64KHZ hifi digital signal to analog signal

    or analog signal to digital signal, making display have the perfect video effect.

5. Cascade functionThrough the dig switch on 802 sending card, several 802 sending cards can be

    easily cascaded to support a super large led display

6. Sending card U/D port flexibility for carrying half width or half heightFor example, TS801 can max

    support 1280*1024 with two portsA single network output port supports 1280*512 or 640*1024

7. Sending card rotation functionIn Sender setting, sending card has 0, 90, 180, 270 degree rotation function

8. Sending card zoom in/out functionIn Sender setting, the ratio of width and height can be set to

    realize zoom in or zoom out

9. Supporting 10-bit colors The seventh supports 8-bit colors: 256*256*256=16777216 kinds of colors.

    The eighth supports 10bit colors: 1024*1024*1024=1073741824 kinds of colors. It needs to work

    with our video processors using the 30 bits TTL.

10.Multi-display synchronous and combination functions.One sending card can control multidisplays,

     realizing displays combination, synchronous display, and independent play.
