Novastar LED Display Control System

The led control system is a kind of led system control software specially made for LED display. You can control the display effect of the LED display on your computer. You can freely set various parameters of the LED display, support brightness adjustment, screen control, The functions of monitoring, multi-function card, testing tools, etc. can meet your various requirements for LED display for safety.

Each led display screen panel needs to use at least one sending card. MSD300 Led Display Sending Card is a standard model of Nova controllers for led display screens. It has the same characteristics as Led Display Sending Card MSTRL300.

MSD300

Product Type :Controller

Input Resolution :1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668(width and height can be specially defined by customers)

Capacity :1.3 million pixels

Supply Voltage :AC-100-240V-50/60HZ

Control Method :USB Interface

Video Interface :DVI

Audio Interface :3.5mm

Viedo Format :RGB

Output Interface :2 Ethernet ports

Bit Depth Of Video Resource :8bit

Light Sensor Interface :1

Certification :CE.RoHS.FCC.EAC.IC

1) 1 DVI video input;
2) 1 audio input;
3) 2 Ethernet port outputs;
4) USB interface which can be cascaded for uniform control;
5) Single sending card supports resolution of 1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668;
6) 1 light sensor interface;
7) Independent power supply;
8) Cascading ports (UART OUT/IN) have adopted aviation plug which is stable and reliable.

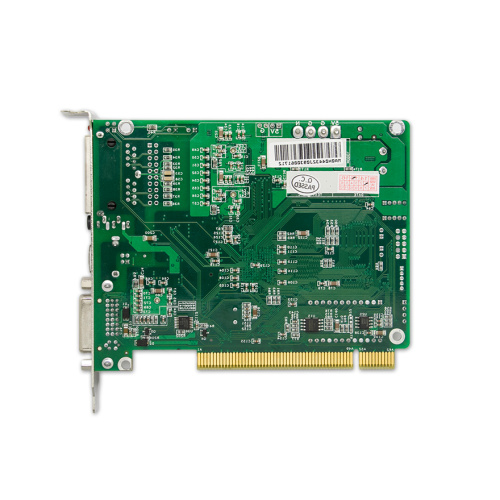

MSD300 LED DISPLAY Sending card Diagram
