Ph3.9 Indoor Led Display Screen
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- CIF, FCA
- Delivery Time:
- 25 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 4000m2/month |
| Supply Ability: | 50000m2/year |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | CIF,FCA |
| Certificate: | ISO2004 |
| HS Code: | 8528591090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Guangzhou |

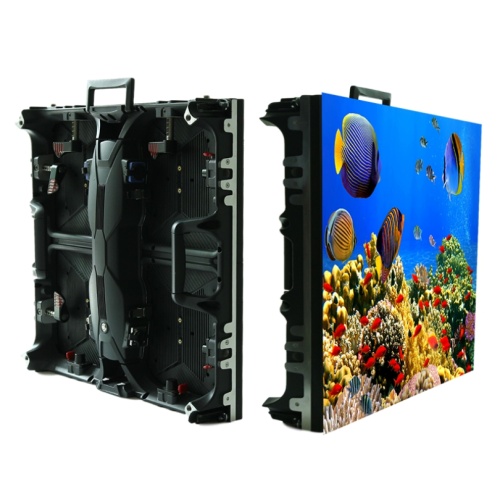

Ph3.9 Indoor Led Display Screen
LED display How to use: Edit the program on the computer through the LED display control software and save it to a USB flash drive. Then connect the U disk with the cable of the receiving card in the LED display, so that the program information of the U disk is automatically saved in the receiving card, so that the program text we edit can be displayed on the LED display.
Advanced Version,Thinking what you want.
With die casting aluminum cabinet design, light, thin and fast installation are the main features of Rental LED display screen. Light weight cabinet , quick installation, dismantling and transportation, suitable for large size of rental and fixed installation applications. And processing adopts synchronous control system, an acceptable DVI, VGA, HDMI, S - video, compound, YUV video input signal, can broadcast video, graphic program at will, in real-time, synchronous, clear information dissemination way play all kinds of information. Color is clear, strong ability to adapt. Privaled's LED rental display Screen has the following advantages:
Lock design
Good heat dissipation
Seamless splicing
Great consistence
Product features and benefits
1, lightweight, weighs 7 kg, installation up easily;
2, ultra-thin, cabinet body is made of die casting aluminum, high strength, high tenacity, high precision which is not easy deformation during transportation and working;
3, high precision, mechanical processing precision is around 0.1 mm;
4, fast locking mechanism is used to connect cabinet up and down, left and right, 10 seconds to complete the installation of an enclosure, high precision installation;
5, reliable - strength, high hardness, good heat dissipation effect.
6, compatibility, one cabinet can be used for indoor and outdoor modules. One time investment for led cabinet body,
parameter:
| Model | Items | PH3.9 | PH4.8 |
| Unit Module | Model number | PR3.9O | PR4.8O |
| Pixel pitch | 3.9mm | 4.8mm | |
| Size of pixel | SMD1921 | SMD1921 | |
| Pixel configuration | 1R1G1B | 1R1G1B | |
| Size of block module | 250mm×250mm | 250mm×250mm | |
| Resolution of module | 64×64 | 52×52 | |
| Density | 65536dots/m² | 43264dots/m² | |
| Module power | 15w | 50w | |
| Cabinet | Cabinet material | Die casting Alu | Die casting Alu |
| Size of cabinet(l*h*t) | 500mm×500mm×70mm | ||
| Weight of cabinet | 8.5KG | 8.5KG | |
| Support hanging or not | Yes | Yes | |
|
Main Parameter |
Best viewing distance | >3m | >4m |
| Driving method | 1/16 scanning | 1/12 scanning | |
| Best viewing angle | ≤140° | ||
| Max power consumption | <950W/m² | <950W/m² | |
| Average power consumption | <450W/m² | <450W/m² | |
| Support front removeable or not | Yes | Yes | |
| Colors | >16.7M | ||
| Gray scale | 16bits | ||
| Color temperature | 6500K | ||
| Control method | Synchronization | ||
| Driving device | Constant current | ||
| Frame frequency | 60Hz | ||
| Refresh frequency | 1000-4800Hz | ||
| Brightness | >6000cd/m² | >6000cd/m² | |
| Working voltage | AC100/220V 50/60HZ | ||
| Working temperature | - 20℃~+50℃ | ||
| Out-of control point | <0.0001 | ||
| Brightness Control | 256 grade | ||
| IP grade | IP65/55 | ||
| Mtbf | 10,000Hours | ||
| Life span | 100,000Hours | ||
Package: Wooden case/ flight case 5 Cabinets in 1
