P1.875 Indoor HD LED Video Wall
led display replacement: remove the gel around the damaged LED with a sharp tool (such as tweezers), and make the LED pins clearly visible in the line of sight, clamp the LED with tweezers in the right hand, touch the solder with a soldering iron in the left hand, and make a little pause, Melt the solder and remove the LED with tweezers. Insert the LED lamp that meets the requirements into the hole of the PCB circuit board correctly, melt a little solder wire and stick it to the soldering iron head. Use tweezers to adjust the LED direction to make it stable. The same type of gel (PH = 7) seals the LED.
PJ series of HD led screen has lighter cabinet weight. Front& back maintenance function. Also with modular accessories, it is much convenience for Maintenance. Priva LED PJ series has pixel pith P1.56mm,P1.875mm, P2mm and P2.5mm for Led Video wall. This series of LED screen is widely used for meeting roon, controll romm, Showing room and convention center.
PJ series HD LED Screen has following features and function.
Features and benefits

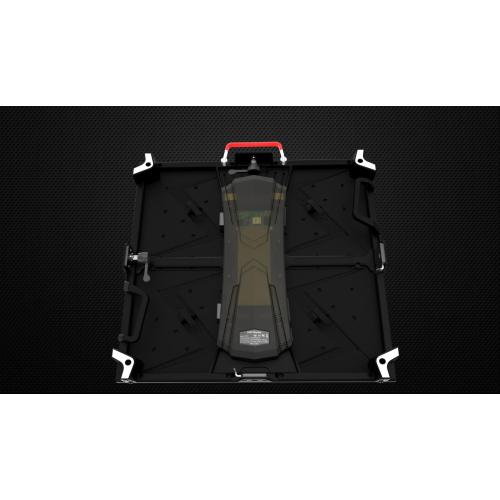

1, lightweight, weighs 7 kg, installation up easily; ultra-thin, cabinet body is made of die casting aluminum, high strength, high tenacity, high precision which is not easy deformation during transportation and working;
2, Support front & back maintenance. with modular accessaries.
3, fast locking mechanism is used to connect cabinet up and down, left and right, 10 seconds to complete the installation of an enclosure, high precision installation;
4, compatibility, one cabinet can be used for different pixel pitches. Easier to upgraded. One time investment for led cabinet only.
5, Safty package
6, Front access tool
7, Vivid picture effective
parameter:
<
Itmes
PJ1.56
Pixel Pitch（mm）
1.56 mm
Pixel Confguration
SMD 1010
Pixel Matrix per Panel（dots）
312 x 312 dots
Pixel Density（dots/m²）
422,500 dots/m²
Panel Dimension(W×H×D)
480 x 480 x 63mm
( 18.9”×18.9”×2.5”)
Panel Material
Die-casting Aluminum
Panel Weight（kg/panel）
5.5 kg/panel （12.1lb/panel ）
Color Depth（Bit）
14 bit
Refresh Rate（Hz）
≥2880Hz
Driver Method/scan
Scan 1/31
Brightness（nits）
600~800 nits, adjustable
Horizontal Viewing Angle（°）
160 °
Vertical Viewing Angle（°）
160 °
AC Power Input（V）
AC110V~ 220V ±10%
AC Power Frequency（Hz）
50 ~ 60 Hz
Max. Power（W/m²）
700 W/m²
Avg. Power（W/m²）
230 W/m²
Storage Temperature（℃ ）
-10℃ ~ 50℃
Operating Temperature（℃ ）
- 0℃ ~ 40℃
Storage/Operating Humidity（RH ）
10% ~ 90%RH
IP Rating（IP ）
P30 / IP30
Lifetime Typical Value（Hrs）
100,000 Hrs
Installation Type
Fix , Front installation
Maintenance Method
Front & Rear serviceable
Certifcations
TUV-CE，ETL
Flight case
Wooden case
