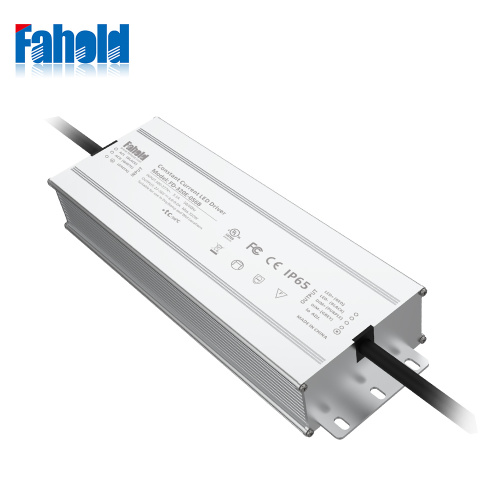

320W FD-320E-056BXXXXA LED DRIVER
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 5 Piece/Pieces
- Min. Order:
- 5 Piece/Pieces
- Delivery Time:
- 3 - 20 days Days
- Transportation:
- Ocean, Air
- Port:
- Yantian, Shekou, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong , China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200 thousands pcs per month |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | UL, FCC, CE |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Air |
| Port: | Yantian,Shekou,Hongkong |
This Horticulture lighting driver series is our main design to help the grow light manufacturers all around the world. Standard features of this led drivers include short circuit , over load, over voltage, over current and over temperature protections. Low cost, high reliability. Mounting hole positions to hold compatible power supplier securely. Constant current design, 5 years warranty.
Input characteristics
Input Voltage
120-277Vac(max 100-305Vac)
Input Frequency
50/60Hz
Input Current (Typ.)
3.7 A @100-305 Vac , 100% load
No load Voltage
2.5Wmax
Inrush Current
75Amax. @ 220Vac, 25℃
Power factor（Typ.）
PF>0.95 @ 120Vac, PF>0.90 @ 277Vac,100% load,
THD
THD<20% @ 120-277 Vac, 100% load
Output characteristics
Current accuracy
± 5% I0
No load Voltage
Vout 58V max
Efficiency
≥91.5% @120-277 Vac
Output Voltage
27-56V ; Table 1 ,
Ripple and Noise
270mVp-p
Line Regulation
3%Io
Load Regulation
3%Io
Turn On Delay Time
Under normal conditions, the maximum delay time is 3second
Potentiometer current output range
The minimum value:4000mA; maximum value: 9000mA; Remark: the total output power does not exceed 320W (actual output voltage * actual output current = power), otherwise, it can not be guaranteed.
Please use the matching programmer to set the output current
Protection functions
Open circuit
When the LED disconnection the product is protected such as hiccup or when it is at the highest point of output voltage, the power supply shall be self-recovery when the fault condition is removed.
Short Circuit
The input power shall decrease when the output rail short, the power supply shall be
self-recovery when the fault condition is removed.
Environmental conditions
Operating Temperature
-40℃ to +60℃
Operating Relative
10% to 90% RH, non-condensing
Storage Temperature
-40℃ to +85℃
Storage Relative Humidity
10% to 90%RH, non-condensing（Sea level to 2,000 m）
Vibration
10 to 500HZ Sweep at constant acceleration of 1.0G (depth: 3.5mm )for 1 Hour for each of the perpendicular axes X, Y, Z.
High Voltage Power Supply 320W LED Drivers
Looking for ideal LED Drivers Manufacturer &Supplier? We have a wide selection at great price to help you get creative, All the products are guaranteed. We are golden supplier of LED Driver.Our Factory is located in Bao'an District, Shenzhen, China. If you have any question, please
feel free to contact us.
