LINEARdrive constant voltage 12V24V
- Payment Type:
- T/T, Paypal
- Incoterm:
- FOB, CIF
- Min. Order:
- 300 Piece/Pieces
- Min. Order:
- 300 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200000pcs |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CIF |
| Certificate: | ISO9001 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian |
Constant voltage output
0-10V/PWM/RX Dimmable compatible dali dimming
No-flicker output.
UL,FCC,TUV,CE certification
Constant current design
3 in 1 dimming mode:0-10V,PWM,RX
Smoothly dimming(0-100%),can dim to off
TUV CB CE UL FCC Certified
PROTECTION:Short Circuit, Open Circuit
Surge protection: 1KV
SELV safe output design
Application
Down light, Panel light, strip light
|

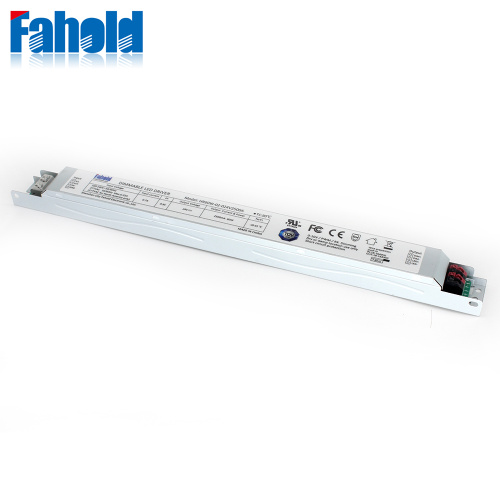

Product Name |
Slim Led Driver 60W |
|||
|
Item |
HR60W-02-024V/12V | |||
|
Output |
Current |
2500mA/5000mA |
||
|
DC Voltage |
24V | |||
|
Rated power |
-- | -- |
60W |
|
|
Current Accuracy |
±3% |
|||
|
R & N (Max) |
75mAp-p |
|||
|
Channels |
1 |
|||
|
Input |
Voltage Range |
100VAC – 277VAC |
||
|
Frequency Range |
50 – 60Hz |
|||
|
Efficiency(Typ) |
88% |
|||
|
Power Factor(Typ) |
≥ 0.95 |
|||
|
AC Current(Typ) |
0.11A/230VAC |
|||
|
Leakage Current |
<5mA/240VAC |
|||
|
Inrush current(Typ) |
<1A at 230VAC |
|||
|
Protection |
Short Circuit |
Output close, recovers automatically after fault removed |
||
|
Function |
Dimming |
1-10V dimming (Passive or active) |
||
|
Others |
Dimension |
346(L) 30(W)*22.5(H)mm |
||
|
Working temp. |
-20℃ ~ 50℃ |
|||
Payment: TT,Western Union, Moneygram,Paypal,Escrow.,Etc
Shipping:
Delivery: Send out immediately after your payment
1. 5 Times test before shipment
2. 5 Years warranty
3. Good protectively package
4. Update tracking number on next day
5. Replacement for Spare Parts if there is any faulty
6. Better offer on Bulk qty and re-orders
Shenzhen Fahold Electronics Co.,Ltd. was established in 2010, a factory which integrating the LED drivers design, R&D and manufacture, passed the ISO9001 quality management system certification. It covering an area of 5000 squre meters, existing staff morethan 200 workers which including 25 researchers, 20 quality controls. The production capacity of Fahold are 5 million units per year.
Providing high quality and favorable price products
Related Keywords
