UL Listed Outdoor Flood Lights Driver

Details

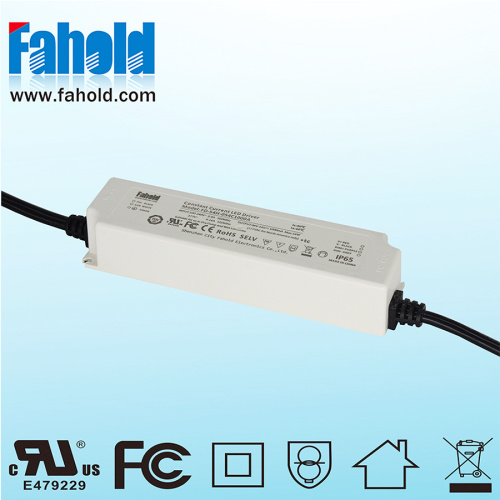

FD-55H-042C, designed for outdoor led flood light fixtures, commercial flood lights. To operate general LED lighting applications. Flicker free 0-10V dimming LED Driver 55W 100-1800mA, with wattage range of 55W , UL,CB,CE compliant, wide voltage output of waterproof design. The units are suitable for Outdoor flood lights. Other standard features of the range include 100-277V , plastic gluing, and protections against short circuit, over load and thermal to 110 °C, across the whole surface of the unit.

Standard features of this LED lighting driver include short circuit, over load, over voltage & over temperature protections and the unit is designed to meet TUV,  EN61347-1, EN61347-2-13 and emmisions to EN 55105, EN61547.

Features & Benefits

· UL Listed

· Powder-coated iron

· High PFC

· Single channel output, output current level selectable by DIP S.W.

· Support 0/1-10V analog dimming signal, Passive or active signal.

· Wide range of input voltage 100VAC ~ 277VAC

· High efficiency up to 88%

· Built-in active PFC function

· 100% output when no dimming signal input, can be used as normal power supply

· Dimming effect smooth, non-flicker

· Protections: Short circuit.

· Suitable for outoor LED lighting application

Product Specs:

Output voltage:24-38/30-42/36-54/65-115V

Output wattage: 55W

Current:100-1800mA

Dimensions:  146.5x39.5x30mm

Efficiency:88%

Encironment/IP Rating: indoor/outdoor/IP65

Max. Input voltage:277V

Dimming way: 0-10V/PWM/RX

Certificate: UL, FCC, Class P

Designed for led outdoor flood lights commercial, led flood lights, flicker free and dimming smothly. Its housind was made out of plastic and be glued,  independent design for the output connection structure, suitable for north Amercian market.
