Flood Lights Outdoor Security Lights LED Driver

Details

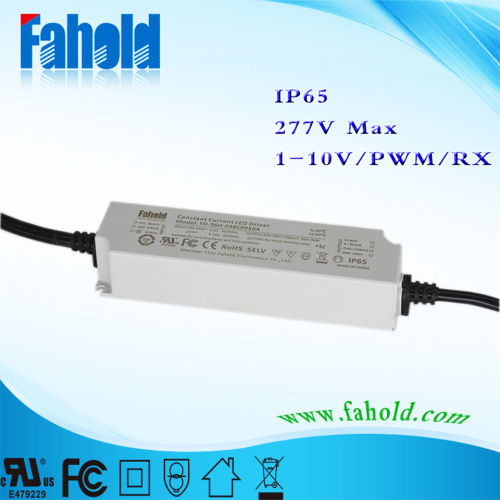

FD-36H-042C, designed for 30W LED Flood Lights . Flicker free 0-10V dimming LED Driver 36W 1200mA, with UL,CB,CE compliant, wide voltage output of IP65 waterproof design, to operate general LED lighting applications. The units are suitable for Outdoor flood lights. Other standard features of the range include 100-277V , plastic gluing, and protections against short circuit, over load and thermal to 110 °C, across the whole surface of the unit.

Standard features of this LED lighting driver include short circuit, over load, over voltage & over temperature protections and the unit is designed to meet TUV,  EN61347-1, EN61347-2-13 and emmisions to EN 55105, EN61547.

Features & Benefits

· UL Listed

· Powder-coated iron

· High PFC

· Single channel output, output current level selectable by DIP S.W.

· Support 0/1-10V analog dimming signal, Passive or active signal.

· Wide range of input voltage 100VAC ~ 277VAC

· High efficiency up to 88%

· Built-in active PFC function

· 100% output when no dimming signal input, can be used as normal power supply

· Dimming effect smooth, non-flicker

· Protections: Short circuit.

· Suitable for outoor LED lighting application

Product Specs:

Output voltage Range:24-38/30-42/36-54/65-115V

Voltage:30-42V

Output wattage: 36W

Dimensions:  146.5x39.5x30mm

Efficiency:88%

Encironment/IP Rating: indoor/outdoor/IP65

Max. Input voltage:277V

Dimming way: 0-10V/PWM/RX

Certificate: UL, FCC, Class P

Led floodlight Driver, Desigen for 30W LED OUTDOOR FLOOD LIGHT high lumen led flood lights, flicker free and dimming smothly. Its housing was made out of plastic and be glued, independent design for the output connection structure, suitable for north Amercian market.
