Junction Box Driver for Led Lighting
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 2000 Piece/Pieces
- Min. Order:
- 2000 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- YanTian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 200 Thousands Pcs/Month |
| Supply Ability: | 200000Pcs/Month |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Certificate: | ISO9001 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | YanTian |
Product Description:

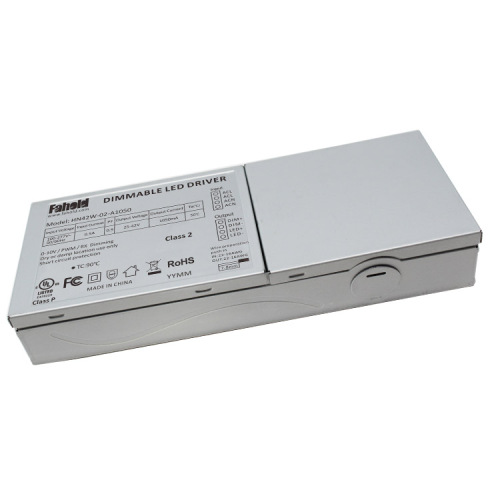

HN42W-02-A1050 Led Driver is used for panel light.
The case was made from blue zinc plated steel,that wont rust and be out of shape easily,the wiring design is compliant with the rule of the wire cant be exposed in North America
Excellent design and consisting of good material & component ensure more than 5 years life time, most cost-effective.
Technical Parameter
|
Output |
Rated Power |
42W |
|
Output Voltage |
25-42Vdc |
|
|
Rated Output Current |
1050mA | |
|
Ripple and Noise |
500mVp-p |
|
|
Current accuracy |
± 5% I0 |
|
|
Efficiency |
85%@@ 100-277Vac & 100% load | |
|
Line Regulation |
3%Io |
|
|
Load Regulation |
3%Io |
|
|
Turn On Delay Time |
Under normal conditions, the maximum delay time is 2 second
|
|
|
Input |
Input Voltage |
100-277Vac |
|
Input Frequency |
50/60Hz |
|
|
Input Current (Typ.) |
500mA @100-277 Vac ,100% load | |
|
No load Voltage |
55Vmax |
|
|
Inrush Current |
60Amax. @ 230Vac, 25℃
|
|
|
Power factor(Typ.) |
PF>0.9@115VAC/230VAC/277VAC, 100% load | |
|
THD |
THD<20% @ 120-277 Vac, 100% load | |
|
Protection |
Open circuit |
When the LED disconnection the product is protected such as hiccup or when it is at the highest point of output voltage, the power supply shall be self-recovery when the fault condition is removed |
|
Short Circuit |
The input power shall decrease when the output rail short, the power supply shall be self-recovery when the fault condition is removed |
|
|
Safety Compliance |
Safety Standard |
GB19510.1,GB19510.14;EN61347-1,EN61347-2-13;UL8750, CSA C22.2No.250.13-12. |
|
EMI |
GB17743,GB17625.1; EN55015, EN61000-3-2, EN61000-3-3.
|
|
|
Surge Immunity |
CM-10KV; DM-6KV Performance Criterion:B |
|
|
Leakage Current |
The leakage current shall be less than 0.25mA for Class 2 at maximum input voltage |
|
|
Features
|
· Constant current mode output · Steel housing with Class2 design · Built-in active PFC function · 3 in 1 dimming,Smoothly dimming(0-100%),can dim to off. · Protections: Short circuit. · Typical lifetime>50000 hours · 5 years warranty · Suitable for indoor LED lighting application |
|
Application:
Junction box led driver is mainly used for panel light in house,office,subway station etc.
