NEW Arrival Outdoor IP67 Waterproof LED Driver 100-277Vac

For LED street lighting, the Driver is the most critical factor of the complete light. LED Driver for street lighting must have special design and technical features and use high quality components to ensure the lifetime of the power supply matches that of the streetlight.

Fahold LED drivers are used by many global street lighting manufacturers, and the installed base is growing day by day! Alongside the traditional IP67 sealed Driver(Power supply) on the market today, Fahold undertook a very interesting solution for a major street lighting manufacturer by designing a new generation of product, using a two-stage topology.

Features & Benefits

· High PFC

· IP67 Waterproof

· Single channel output, output current level selectable.

· Wide range of input voltage 100VAC ~ 277VAC

· Built-in active PFC function

· 100% output  dimming signal input, can be used as normal power supply

· Protections: Short circuit,over load, over voltage & over temperature protections

· Suitable for Outdoor LED lighting application

Product Specs:

Output voltage:24-38V/30-42V/36-54V/45-76V/75-143V

Max. Output wattage: 160W

Max. Output Current: 5000mA

Dimensions:216x66x38mm

Efficiency:93%

Encironment/IP Rating: outdoor/IP67

Flicker free

Max. Input voltage:277V

Certificate:UL, FCC ,RCM,CE

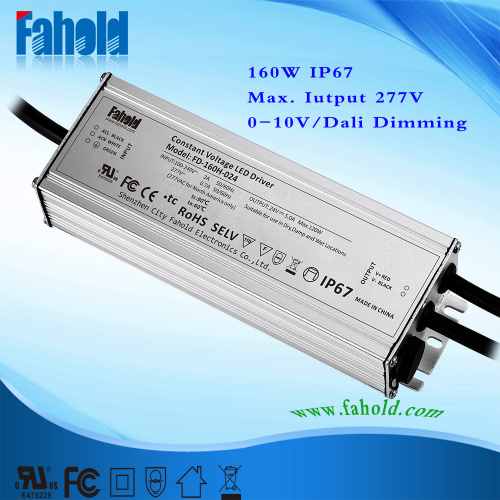

FD-160H-024B, industrial luminaire,160w led driver, Desigen for high lumen Outdoor lightings, Energy saving driver. Its housing was made out of bright Aluminum,  independent design for the output connection structure, suitable for North American & Europe market.
