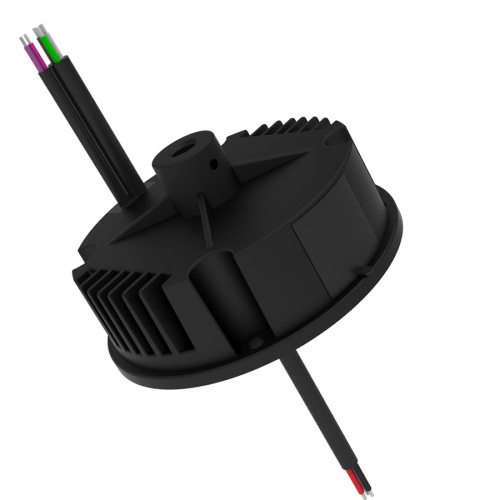

100W FD-100K-130B/260B Round High Bay Light Driver
-
$11.98≥5 Piece/Pieces
- Min. Order:
- 5 Piece/Pieces
- Min. Order:
- 5 Piece/Pieces
- Transportation:
- Ocean, Air
- Port:
- Yantian, Shekou, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs |
| Supply Ability: | 200000pcs |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,EXW,FCA |
| Certificate: | ISO9001 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Air |
| Port: | Yantian,Shekou,HongKong |
IP65.
Constant Current Design: Output current adjustable via Offline program
0(1)-10V dimming：Smoothly dimming & flicker free.
Dim to off without afterglow.
DIP Button: 3 types CCT Color switchable &Rated Power Switchable.
Surge Immunity: D-M:4KV/ C-M:6KV.
Protection：Short Circuit, Open Circuit.
Auxiliary Output 12V/200mA
Dimming signal is isolated from LED output.
Compatible with Llighting sensor control
FD-xxxK special UFO LED Drivers with CCT(changeable color temperature) function and Power Adjustable via DIP button. Customers can select different power at one unit. It supports Multiple-units dimming in parallel functions, centralized intelligent control and management functions and compatible with multiple dimming control functions (intelligent networking control, independent single lamp control, partial multi-units in parallel control, etc.) for Commercial&industrial lighting.
Led Driver Dimmable,UL Dimmable Transformer,Constant Current Led Driver
Details:
Model List:
|
Model |
Power(W) |
Vout(Vdc) |
Iout (mA) |
Efficiency |
|
FD-100K-130B/C/D/E |
100 |
90-130 |
1000(Max) |
95.0% |
|
FD-100K-260B/C/D/E |
100 |
180-260 |
500(Max) |
96.0% |
|
|
Applications
Street Lights, , Road Lighting, Gate Lighting, Pathway Lighting, Ramp Lighting, Sidewalk Lighting, Campus Lighting, Boat Dock Lighting, Farm & Ranch Lighting, Wildlife Area Lighting, and Perimeter Security Lighting.
