Drone Part DJI 18A ESC Electronic Speed Control
-
USD11≥1 Piece/Pieces
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 1000/day |
| Supply Ability: | 1000/day |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | EXW |
| Certificate: | CE |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |

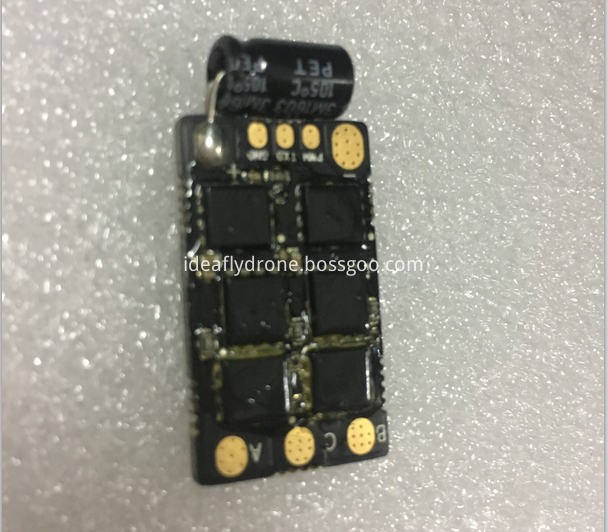

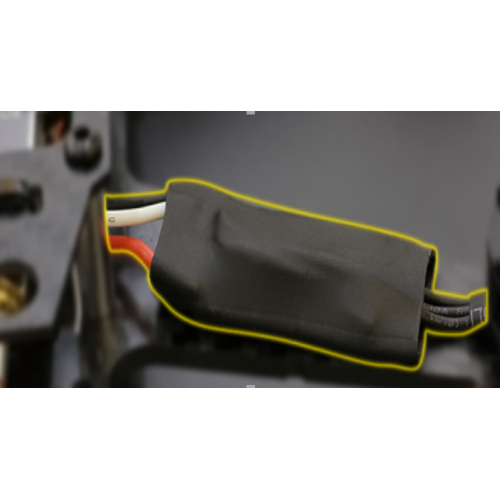

Drone Part DJI 18A ESC Electronic Speed Control
Drone Part DJI 18A ESC Electronic Speed Control from DJI are designed with the mini quad user in mind, they utilize a custom designed System on a chip (SOC) and modular board. These work together with advanced control algorithms to make the DJI 18A ESC an unbelievably fast and incredibly accurate motor control system. The new DJI Electronic Speed Control enables quick and intuitive configuration of various parameters and also allows for the updating of firmware, the process is almost effortless and will enable you to get flying as quickly as possible with Drone 18A ESC.
Specifications
Battery Input: 2-3S LiPo
Max Input Voltage: 13.05V
Max Continuous Current: 20A
Max Burst Current (<3 sec): 30A
Max OneShot125 Signal Frequency: 600Hz
Max Regular Signal Frequency: 500Hz
PWM Switching Frequency: 16kHz
Weight: 13.2g
Operating Temperature: -10° to 40°
Dimensions: 42.34 x 18 x 8.80mm
Motor Cable Length: 79.00mm
Power Cable Length: 87.66mm
Signal Cable Length: 119.66mm
