Drone With DUAL IR-EO GIMBAL

Drone With DUAL IR-EO GIMBAL

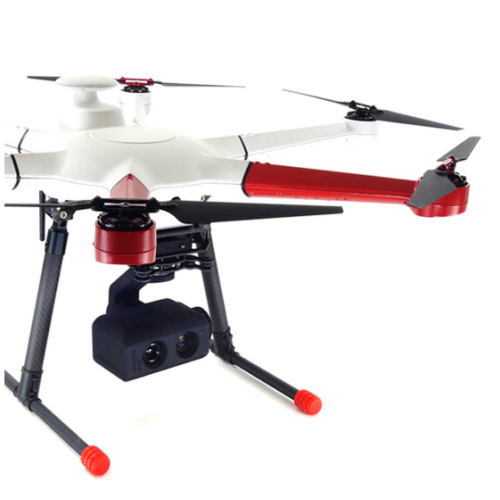

Ideafly Storm 800 Inspection 800mm Hexacopter With DUAL SENSOR IR-EO GIMBAL  is a professional Commercial Inspection Drone with Thermal Imaging Camera, GEMINI IR-HD GIMBAL, DUAL SENSOR GIMBAL  are widely used in Monitoring, power cruising, forest patrol, search and rescue, solar cell testing, environmental protection, wildlife tracking, ground remote sensing.  Several cameras for choice, Tau 2 640 9mm, 13mm, 19mm; FLIR Vue 336*256 640*512, 57.4*44.4MM size, 133G weight. The structure of Storm-800 takes user need.into consideration ,leting you enjoy your shooting anywhere anytime. It's the first hexacopter of using high-performance engineering plastics frame in UAV drones area. This way not only makes the appearance more stylish, but makes it easy to assemble.

Dual sensor IR + EO gimbal with onboard FullHD 10x zoom camera and plug&play system for Flir Tau 2 and Flir Vue Pro thermal camera, ready for UAV multirotor

DUAL SENSOR IR-EO GIMBAL FOR MULTIROTOR

Gemini IR-HD is a professional 3-axis gyro-stabilized dual sensor IR-EO gimbal with onboard Full HD daylight camera (10x optical zoom/16M sensor) and Infrared Thermal Camera mount adapter for different Flir Thermal camera models and lenses (Flir Tau 2, Flir Vue, Flir Vue Pro, Pro R and Flir Tau 2 Thermal Capture). Gemini IR-HD is a ready to use plug & play system compatible with any Multirotors UAV/UAS on the market.
This dual sensor IR-EO gimbal provides high precision pointing accuracies in a small, lightweight package particularly useful to customers who require multiple sensors feedback during one flight. Suitable for police, search & rescue, aerial survey, fire inspection, solar panel & industrial inspections.
Applications
Gemini IR-HD is a gyro-stabilized Dual Sensor IR-EO gimbal with onboard Full HD  x10 zoom camera/16mp Exmor Sensor ready to use with Flir Thermal Camera for different application such as:
Security & Surveillance
Search and rescue
Solar panel inspection
Powerline and pipeline inspections
Industrial inspection
Wind turbine inspection
Fire Fighting, Fire Control / Spotting
VOC & Gas Detection drones
Damage Assessment
Traffic Surveillance
Coastal and Border Control
Anti-Terrorist and Law Enforcement
Maritime Surveillance
Wildlife Spotting

Specs:

Weight: 4800G

Maximum takeoff weight: 6800G

Maximum pitch angle: 60 degree

Maximum rise speed: 10.2m/s

Maximum fall speed: 6m/s

Maximum level flight speed: 8m/s

Maximum flight altitude: 1000meter

Maximum wind speed: 6

Flight time: 32 minutes (16000mah battery)

Power motor model: 4114

Propeller model: 15inch

Wheelbase: 800mm

Package Contents:

Strorm 800 G contains:
1*Frame
6*4114  brushless motor(400KV)
6*40A ESC
6* 15 inch carbon  propeller
1*PX4  flight controller
2*retractable landing gear

1* FS I10 remote

1*A6 balance battery charger

1*16000mah Li battery

1*3 axis gimbal

1* infrared camera

1*7 inch screen

1*charger for screen

1*650mw image transmission

1*assembling and debugging fee
