Dual Ways Control Tripod Turnstile System
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen city, Guangdong province, China |
|---|---|
| Productivity: | 3000 pcs |
| Supply Ability: | 500pcs/month |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | CE,ROHS,FCC |
| HS Code: | 8608000900 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |

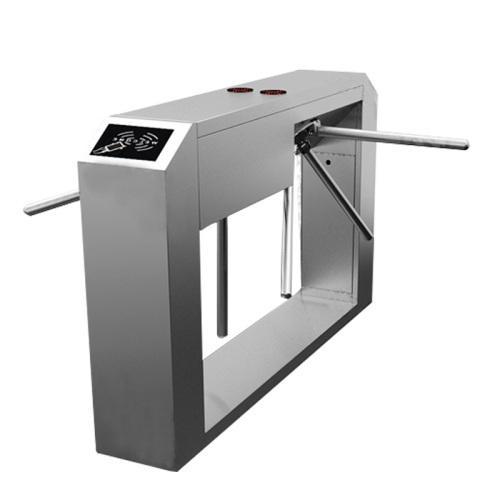

Dual Ways Control Tripod Turnstile System
Waist Height Turnstiles RS 918S combine aesthetics with automatic operation and feature a robust yet compact design. Our turnstiles provide a versatile and effective means of controlling pedestrian access in almost any location. Intended to interface with access control or token operators, our waist high turnstiles are Used in applications including stadiums and arenas, recreation and amusement parks, retail crowd control and office reception control.
Card Reader Tripod Barriers Parameter
Parameter
Input Voltage
AC 220V/110V,50Hz/60Hz
Rated Power
60W
Operating Environment
Indoor and Outdoor
Operating Temperature
-28-60 degree
Operating Humidity
5%-85%
Flow Rate
25-48 passages/minute
Input Control Signal
Dry contact
Max. Tolerance of Arms
Center:80kg,End:40kg
Ingress Protection Degree
IP54
Arm Length(mm)
600
Net Weight
34kg
Gross Weight
40kg
Dimension(mm) Figure 1
L=520,W=280,H=980
Package Size
L=600,W=380,H=1080
RFID Tripod Barriers Features
1. Made of stainless steel SUS304, which is rustproof, durable, and can resist external destroy.
2. The gear drive makes the system more exact and reliable with low noise and no mechanical shock.
3. Self-checking function makes the lock automatic recovery.
4. More work mode for choice:
-Normally closed mode
Under normal circumstances at usual time, the channel is turned off, after a pedestrian with the valid card is read, the channel gate is opened and the passage can get through smoothly.
-Free passage mode
During the peak, the passage can freely access without reading cards.
-Bi-directional flow limit
Cards are required to be read at both entrance and exit before they can access
RFID Card Reader Tripod Barriers Production Process
Our Service:
1. 3 years Standard Warranty, excellent after-sales service, online lifelong technical support
2. 24h*7d at your service to give you the best support;
3. Detailed installation video and wiring diagram to make everything easy
| Certificat | Information | |
|
ISO 9001:2008
Quality management systems
|
Certificat ISO 9001:2008 - Shenzhen RS Security Co.,Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 13 January 2019 |
|
ISO 14001:2008
Environmental management systems
|
Certificat ISO 14001:2008 - Shenzhen RS Security Co.,Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 13 January 2019 |
|
OHSAS 18001:2008
Assessment specification for occupational health & safety management systemsenvironmental management systems
|
Certificat OHSAS 18001:2008 - Shenzhen RS Security Co.,Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 13 January 2019 |
