MIFARE Card Semi-Automatic Tripod Turnstile Gate

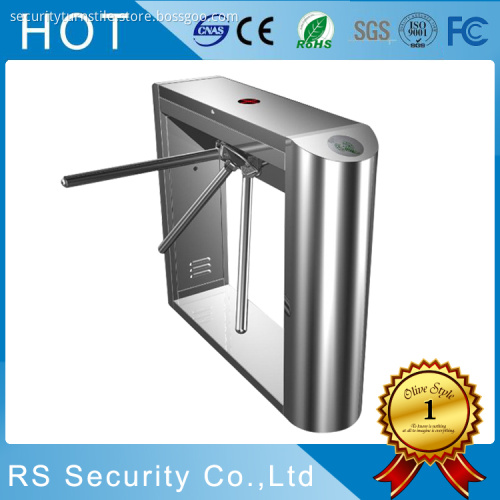

RS Security tripod turnstile made of 304 stainless steel, the gate with nice and elegant shape,antirust,durable, Resistant to external damage.Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.
This security equipment is intergrated with mechanism,electric and micro-controller and various kinds of identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on ,to provide intelligent control and management to flow control.
RS Security tripod turnstile divided into : full automatic tripod turnstile, semi-automatic tripod turnstile, manual type tripod turnstile,and the semi-automatic tripod turnstile gate is the most widely used.
Technical Specifications:
| 1 | Power | AC220C±10V,50/60HZ; AC110C±10V,50/60HZ |
| 2 | Machine core | Automatic |
| 3 | Operating Temperature | -25℃-75℃ |
| 4 | Relative Humidity | ≤95%, No Condensation |
| 5 | Passage Width | ≤600mm |
| 6 | Passing Speed | 45persons/min |
| 7 | Motor | DC Brushless motor, 30W/24V |
| 8 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma |
| 9 | Communication Connection | RS485 Communication |
| 10 | Material | Stainless steel 304,thickness is no less than 1.3mm |
| 11 | Communication Distance | 1200M |
| 12 | Running life | 5 Million(Continuous Opening and Closing Operation) |
| 13 | Protect level | IP54 |
| 14 | Size | 1200*280*980mm(Bridge house ) ; |
| 15 | Colour | SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
| 16 | Operation Place | Subway Station, Hover-port,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise`s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
Functions and Features:
1) The entire system runs smoothly, with a small noise and free of mechanical impact.
The system adopts the exclusive technique of Jaw clutch. As a result, the turnstile is more accurate and reliable for zero point locking and unlocking.
2) DC Brushless Motor, Maintenance Free
3) It has failure self-detect and alarm indication function, facilitating maintenance and application for the users.
4) It is provided with multiple operation modes for selection. It can either read card in double way for flow limit, or reading card in a way while barring in the other, or read card in a way while free passage in the other. Moreover, the operation mode of turnstile may be set up with the built-in small keyboard.
5) It has automatic function of opening or closing when power off.
6) The equipment is provided with a unified, standard electric interface and is available to be integrated with various read/write facilities to facilitate the system integration. It is able to realize far end control and management with the help of administrative computer.
7) It has a function of reading card with or without memory, and it may be set up with the built-in small keyboard in accordance with the requirements of the users.
8)Counting the passing people number automatically, and with LED display
9)Direction indicator function, showing passing or prohibiting for the people
10)Prohibiting opposite direction passing, one side reading the card, the other side will lock when you passing forcedly; the locking time can be set, and unlocked by the card.
11) Prohibiting illegal passing, the turnstile without the card, the locking time can be set, and unlocked by the card.
12) Anti-hit against function, when the turnstile touches the passing people, it will stop and after several seconds, it will turn again.
13) Self resetting function, the system will cancel the people passing right when reading the card but not passing, the time can be set.
14) RS485 Communication function
