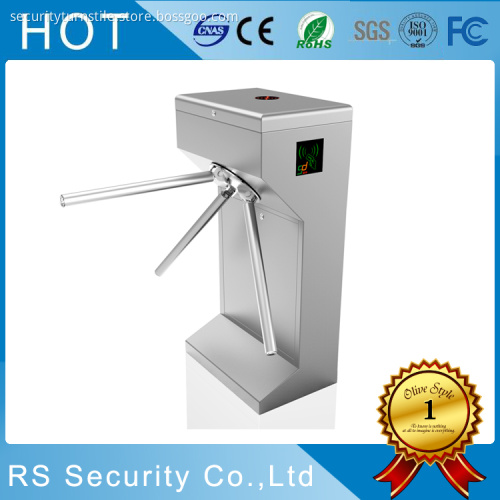

Pedestrian Access Control Gate Biometric Tripod Turnstile
Tripod Turnstile Gate
Tripod Turnstile Gate,Waist High Turnstile Gate,Full Auto Tripod Turnstile Gate,Security Turnstile Gate.
Tripod Turnstiles systems provide effective means for pedestrian flow control at entrances of production facilities, administrative buildings, company offices, schools, university campuses, stadiums, leisure and fitness facilities, amusement parks and zoos, shopping outlets.
Product Description
- Stainless Steel Crowd Control Standard Tripod Turnstile
- Basic Data of Standard Tripod Turnstile
- Material: 304 grade stainless steel of 1.5mm
- Size: 280X1200X990mm
- Pass width: ≤ 550mm
- Pass rate: 30-40 person /min by swiping RFID cards
- Input connection: 220V, 50Hz
- Power consumption: 32W
- Input: 12V dry contact
- Certificates: CE/SGS
- Service: OEM/ODM are welcome
Technical Specifications:
| 1 |
Housing material
|
304 stainless steel |
| 2 | Dimensions | L420 x W330 x H980mm |
| 3 | Arm length | 510mm |
| 4 | Weight | 50kg |
| 5 | Power of motor | DC24V |
| 6 | Voltage | AC220V±10% |
| 7 | Frenquency | 50Hz |
| 8 | MCBF | 5 million cycles |
| 9 | Transit speed | 35 persons/min |
| 10 | Operating environment | Indoor/outdoor (Shelter) |
| 11 | Operating temperature | `-25°C ~ 75°C |
| 12 | Operating humidity |
≤95% no condensation
|
Functions and Features:
1.Incorporating advanced hydraulic kinetic buffering technology to ensure fast and smooth operation.
2.Equipped with standard input/output signal interface, can be integrated with all types of access control panel, offering complete entrance control solutions.
3.Equipped with LED directional indication / status lights.
4.Equipped with mechanical Fail-Safe mode. In the case of power failure, the Tripod arms can be triggered to drop automatically to ensure unblocked access.
5.The positive action lock also helps in preventing two passage at one time.
6.Anti-Illegal Entry with forced rotation feature which can withstand force of up to 80kg.
7.Unique tripod design ensures safe and reliable operation. Highly durable design ensures life span more than 5 million cycles.
8.When the turnstile arms have rotated for more than 60 degrees, the mechanical override will be activated automatically to prevent tailgating.
9.The emergency button which can ensure unblocked access is available.
