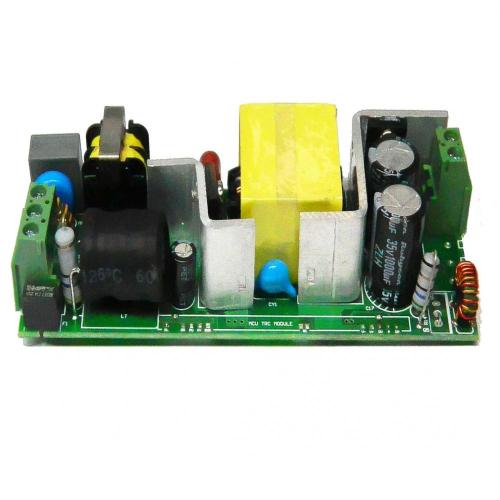

triac dimmable 36W 12V trailing edge dimming

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 10 Days

Transportation:: Ocean, Air, EXPRESS

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000pcs/day
Supply Ability:	10000pcs/day
Payment Type:	T/T,Paypal,Western Union
Incoterm:	EXW
Certificate:	ISO9001
HS Code:	85044014
Transportation:	Ocean,Air,EXPRESS
Port:	Shenzhen

Product Description

Part Number: triac dimmable 36W 12V DR-CV-40
QUICK OVERVIEW
Triac dimmable,Suitable for most leading/ trailing edge dimming,Constant current and constant voltage design,Protections: Short circuit/ Overload/ Over voltage

Other features:
Built-in PFC function (PFC>0.95)
Cooling by free air convection
Up to 80% efficiency
Fully isolated, delivering up to 45W of power

triac dimmable 36W 12V DR-CV-40

Constant Voltage:

Model No.	DR-CV-40
Input Voltage Range	200-240V/AC&90-130V/AC
AC Frequency	48-62Hz
output model	constant voltage
output current	3A/1.6A/
no load voltage	12V.24V.
on load voltage	12V/24V
output power	40w
power factory	>0.95
efficiency	80%-86%
dimension	1324729mm

Constant Current:

Model No.	DR-CC-40
Input Voltage Range	200-240V/AC&90-130V/AC
AC Frequency	48-62Hz
output model	constant current
output current	350ma/500ma/700ma/900ma
no load voltage	65Vmax
on load voltage	11-58v
output power	40w
power factory	>0.95
efficiency	80%-86%
dimension	1324729mm

triac dimmable 36W 12V DR-CV-40

Trade Terms

1. Payment: T/T, Western Union and paypal;

2. Production lead time :500PCS: about 10 workdays, 1000PCS: about 15 workdays;

3. Sample can be delivered within 3days;

4. Shipping freight are quoted under your requests;

5. Shipping port: Shenzhen, Mainland China;

6. Discounts are offered based on order quantities;

7. MOQ: 1 pcs.

Packaging & Shipping
1. Shipping freight are quoted under your requests;
2. Shipping port: Shenzhen, Mainland China;
3. Bubble bag ,inner box,and carton etc,
Neutral Package, or customer color box package upon requirements.

Packaging

Protection:

² Short circuit / over current / over voltage/ Over load/ Over temperature

Quality guarantee:

1.The warranty period is 5 years.

2. If the product have any question during the time, we can fix it or change the same to you.

3.We can design the product according to your requirement. If you want to guarantee over 5 years,

the price could be negotiated separately.

Packing for:Bubble bag ,inner box,and carton etc

about sample and mass production:

Dear buyer arrange the sample cost and freight(if you have express account,provide it),sample time:5 working days,

after confirmed the sample, dear buyer arrange the deposit and we will finish it 10- 15 days after got the deposit,balance before deliver,your own courier or we arrange is possible.

Our product list

Constant Current

Model No.	DR-CC-12	DR-CC-20	DR-CC-30	DR-CC-40	DR-CC-60	DR-CC-80
Input Voltage Range	100-240VAC	100-240VAC	100-240VAC	100-240VAC	100-240VAC	100-240VAC
AC Frequency	48-62Hz	48-62Hz	48-62Hz	48-62Hz	48-62Hz	48-62Hz
Output Mode	constant current	constant current	constant current	constant current	constant current	constant current
Output Current (mA)	350&500 &700	500&700 &900	700&900 &1200	700&900& 1200&1500	900&1200& 1500&1800	1060&1450& 1860&2280
Output voltage (VDC)	42&30&22	48&34&26	51&40&30	68&53&40&30	66&50&40&34	75&55&43&35
Output Power	12w	20w	30w	40w	60w	80w
Power Factor	0.95	0.95	0.95	0.95	0.95	0.95
Efficiency	80%-86%	80%-86%	80%-86%	80%-86%	80%-86%	80%-86%
Dimensions (mm)	943617	1074022	1324423	1324428	1705031	1906529
Operating Temperature		-25~+55°C
Storage Temperature		-40~+70°C
Thermal Dissipation		Nature
Life Time:		50000Hours,at TC max
Relative Humidity		5~95%
Isolation Voltage:		In/Out 3000VAC
Vibration		5-55Hz/2g,30 Mimutes
