Auto barrier gate system (ST201C)

Get Latest Price

Payment Type:: T/T, Western Union

Incoterm:: FOB, CIF, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000pcs per month
Supply Ability:	2000pcs per month
Payment Type:	T/T,Western Union
Incoterm:	FOB,CIF,EXW
Certificate:	CE, ISO
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

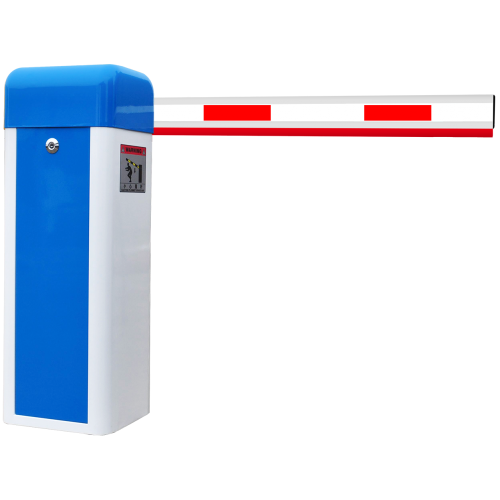

Parking Barrie gate

(Model#ST201C)

Parameters:

Maximum straight boom length	1.5 sec – 3sec	3m
	3 sec – 6sec	4.5m
Opening and closing times	1.5s to 6s
Voltage	24VDC
Frequency	50HZ
Motor power consumption	60W
Working temperature	-30°to 80°
Housing dimension	355(Width)280(Depth)1050(Height)mm
Weight not including barrier boom	50kgs
Drive	Torque motor
Maximum Remote Control Distance	≤40m

Features:

● Speed is adjustable. 1.5second motor, speed can be 1.5sec to 3sed; And 3 second motor, speed can be 3s to 6s. Open & close speed can be different.

● Auto bounce back function. Built-in sensor can detect when arm hits obstacle.

● Auto slow down function. Barrier arm will auto slow down when it will fully close or open.

● Intelligent limited sensor. Limited sensor can check open & close position

automatically. No need adjust it by hand.

● Position memory function. The motor can remember limited position, so it will move back to right position even we turn motor handle to avoid motor stuck.

● Lower working temperature. No thermal protection even we don`t add fan to cool motor.

● Longer working life. It can open and close 3million times.
