ABB AC800M PLC DCS Product

ABB AC800M PLC DCS Product

This Product Guide is primarily intended for sales representative within ABB. An additional user group may be internal ABB customers and important external customers, using the Product Guide as a complement to existing product information. Document Conventions Microsoft Windows conventions are normally used for the standard presentation of material when entering text, key sequences, prompts, messages, menu items, screen elements, etc. Warning, Caution, Information, and Tip Icons This publication includes Warning, Caution, and Information where appropriate to point out safety related or other important information. It also includes Tip to point out useful hints to the reader. The corresponding symbols should be interpreted as follows: This Product guide does not contain last-minute product information and updates which might affect functionality and/or performance. For information on late changes and restrictions, please refer to the Release Notes, Control Software for AC 800M (3BSE021377*).

Introduction:

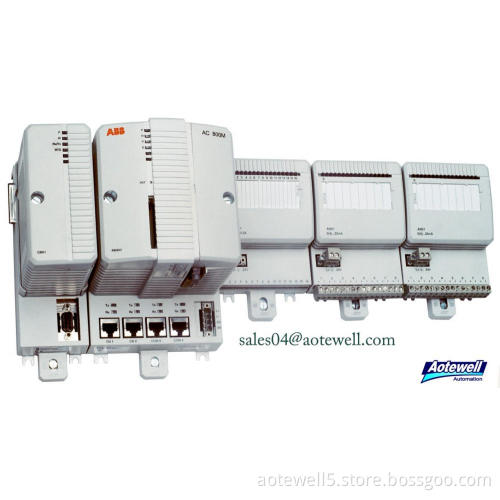

AC 800M can be defined as a hardware platform consisting of individual hardware units. AC 800M hardware platform can be programmed to perform multiple functions, depending on the specific unit configuration and operating system selected. The hardware units which form the AC 800M Controller are:

 • Processor units (including base plates)

 • Communication interfaces for different protocols (including base plates)

 • Power supply units, providing various power output levels

 • Battery back-up unit

• For High Integrity systems control applications with AC 800M HI, special module SM810/SM811, is needed Once configured, the AC 800M hardware platform effectively becomes the AC 800M Controller. Equipped with the specified Control Software, the AC 800M Controller can be used for all kinds of process and industrial automation applications. With Control Software, the controller can act either as a stand alone process controller or as a controller, performing local control tasks, in a control network consisting of many interconnected computers. The AC 800M Controller is delivered without firmware. To provide the controller with Control Software, it will first be necessary to load the firmware and create the application separately by using the Control Builder interface.

The processor unit used for the AC 800M HI Controller is physically identical to other AC 800M controllers, simplifying service and spares support and providing flexibility during the project build phase. The HI functionality is extended by the addition of a SM810/SM811 and the SIL certified software license only. This enables non-critical control schemes to upgraded to SIL certified schemes by the addition of a plug-in SM810/SM811, plus selection of the appropriate license.

Product Benefits:

Some of the benefits of the AC 800M Controller are:

 • Flexibility, the AC 800M Controller can be ordered as individual units which may be mounted in accordance with the customers own requirements.

 • Extremely small footprint. • Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism.

 • Modularity, allowing for step-by-step expansion. You only pay for what you require at the present time.

 • Reliability and simple fault diagnosis procedures.

 • Controller redundancy for higher availability (CPU, CEX-Bus, communication interfaces, S800 I/O).

 • Built-in redundant Ethernet Communication ports.

• Built-in RS-232C communication ports.

• Low power consumption, thus no external fans required

. • Flexible process connection, using either local I/O or standard fieldbuses.

• S800 I/O redundancy.

• Supports S800 I/O High Integrity (with PM865 only).

Features:

The major features of the AC 800M are:

• High performance and large application memory.

 • Extensive availability.

• CPU redundancy (PM861/PM864/PM865/PM866,PM891).

 • AC 800M High Safety Integrity Level 2 certified using PM865/SM810/SM811.

• AC 800M High Safety Integrity Level 3 certified using PM865/SM811.

• Built-in redundant Ethernet channels.

• Built-in RS-232C channels.

 • Sectioned CEX-Bus using a pair of BC810.

 • Quick and simple fault-finding with the aid of LEDs on each unit / channel.

 • Built-in battery back-up of memory (except for PM891).

• External battery back-up.

• Use of industry standard power supply voltage - 24V d.c.

 • Easy mounting on standard DIN rail.

• IP20 Class protection without the requirement for enclosures.

• Incorporation of a wide variety of communication possibilities.

 • Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP).

 • Support for PROFIBUS DP fieldbus.

 • Support for FOUNDATION Fieldbus.

 • Support for Advant Fieldbus 100.

• Support for Modbus TCP.

• Support for Field Device Tool (FDT) and Device Type Manager (DTM) concept for tool routing of HART instruments.

 • Support for connection to INSUM via Gateway (Ethernet/LON).

• Support for IEC 61850.

• Support for PROFINET IO.

• Support for EtherNet/IP.

 • Support for connection to S100 I/O.

• Support for connection to Satt I/O.

 • Support for TRIO/Genius.

 • Support for Genius remote I/O discrete, analog and high-speed counter blocks.

• Support for ABB Drives via PROFIBUS, ModuleBus and DriveBus.

• Support for connection to MasterBus 300.

• Full EMC certification.

 • Selected units UL certified (UL508 as open equipment, and for hazardous locations according to UL60079-15 (Class 1 Zone 2))

AoteWell supply original ABB Inverter, Made in Germany, and Factory products.We are a Automation and process automation company, PLC, HMI, CNC, Inverter, Drive ,Pressure , flow , temperature , process control leading experts, AoteWell is your best choice!

All of the ABB Automation Part we sold.  Sach as AC800M, AC800F, PP800 Panels, ABB ACS800 ACS550 ACS510, Contact us get a best pirce Now!

1)  PM802F Base Unit CPU, 4MB    IN STOCK

     P/N: 3BDH000002R1

2)  Power Supply Module SA801F    IN STOCK

     P/N: 3BDH000011R1

3)  Ethernet Interface Module E1803F    IN STOCK

     P/N: 3BDH000017R1

4)  Battery for AM Buffering SB808F    IN STOCK

     P/N: 3BDM000199R1

5)  CAN Filedbus Module F1810F    IN STOCK

     P/N: 3BDH000030R1

6)  Serial Interface Module F1820F    IN STOCK

     P/N: 3BDH000031R1

7)  Profibus DP Fieldbus Module F1830F    IN STOCK

     P/N: 3BDH000032R1

8)  Bus Terminal Block TB870F    IN STOCK

     P/N: 3BDM000160R1

9)  TK807F Power Cable For SA801F    IN STOCK

     P/N: 3BDM000210R1

10) TK831F-CAN Bus Cable    IN STOCK

      P/N: 3BDM000100R1

11) TK821F-Serial Bus Cable    IN STOCK

      P/N: 3BDM000150R1

12) DRA02-RACK with 10-Module Slots    IN STOCK

      P/N: 0369673M

13) DPW03 Power Supply    IN STOCK

      P/N: 8018544M

14) SD622 Power Supply DC24V    IN STOCK

      P/N: 3BSC610038R1

15) CL830 Profibus DP Interface Module    IN STOCK

      P/N: 3BSE013252R1

16) AI810 Analog Input Module 6CH    IN STOCK

      P/N: 3BSE008516R1

17) DI810 Digital Input 16CH    IN STOCK

      P/N: 3BSE008508R1

18) DO810 Digital Output Module 16CH    IN STOCK

      P/N: 3BSE008510R1

19) TU830 Module Termination    IN STOCK

      P/N: 3BSE013234R1
