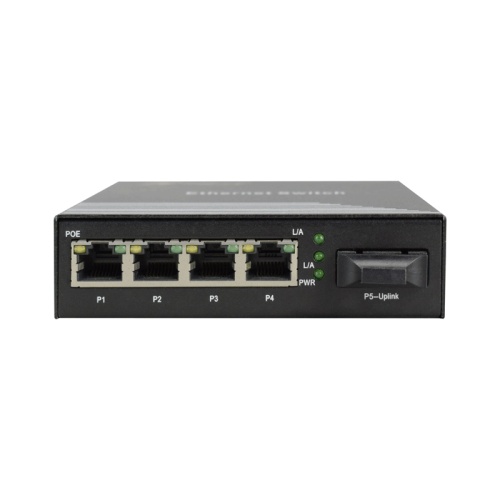

N-net Non-managed Network 10/100M POE Switch 5 Ports
NT-1400-AF4 unmanaged fast ethernet POE switch provides four 802.3at PoE ports for catering to small-scale IP surveillance networks at a lower total cost. With one uplink port, the recorded HD video files from the 4 PoE IP cameras can be powered by the NT-1400-AF4 Network switch and saved in the 4-channel NVR systems or surveillance software to perform comprehensive security monitoring and manage the surveillance system in the local LAN or the remote site via Internet.
4 Ports Ethernet Poe Switch Features
- Built-in efficient switching core to implement flow control and reduce broadcast packets
- Standard Compliance: IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3af/ at PoE
- 10/100Base-TX automatically identify the direct line and cross-line, compatible with various cards, switches, HUB and other Ethernet devices
- Store-and-forward mechanism employed to avoid packet loss and error frames
- Support full-duplex flow control / half-duplex back pressure
- Jumbo frames support a maximum of 1552 bytes
- 48 DC power input
- -20 To 70 ℃ operating temperature to meet a variety of complex environments
- Support ESD protection at Ethernet ports
- Dual-fiber multi-mode/ single-mode and single-fiber single-mode available
- Support PoE power supply up to 30W
Specifications
|
Item |
Fast Ethernet POE Switch With Power Over Ethernet Function |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3af/ at PoE |
|
Wavelength |
1310nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode:2km Single fiber single mode: 20/40/60/80km Dual-fiber single mode:20/40/60/80/100km Category-5 twisted pairs: 100m |
|
Ethernet Port & fiber switch port |
4 RJ45 ports: Connecting STP/UTP category-5 twisted pairs, EIA568A/B 1 optical port: Multi-mode :SC / FC/LC(50/125, 62.5/125μm) Single mode : SC / FC/LC (8.3/125, 8.7/125, 9/125 or 10/125μm) |
|
Conversion means |
Store and Forward |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
Power Supply : PWR Uplink: L/A, SPD (1~4)UTP Port: PoE, L/A |
|
Power supply |
Power Input Range: 52VDC, Power Interface: DC Power Jack |
|
Power Requirement |
52VDC @ 1.25A 60W |
|
Power consumption |
<5W |
|
Operating temperature |
-20~70ºC |
|
Operating humidity |
5%~90% non-condensing |
|
Storage Temperature |
-20~70ºC |
|
Storage humidity |
5%~90% non-condensing |
|
Dimensions |
110.20mm (W)×95.70mm (D)×30.00mm (H) |
