Unmanaged Fast Network POE Switch
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CIF, FCA
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Ocean, Land, Air, EXPRESS
- Port:
- China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000pcs/day |
| Supply Ability: | 5000PCS around 10-20 days |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CIF,FCA |
| Certificate: | CE, FCC,ISO9001 |
| HS Code: | 8517622990 |
| Transportation: | Ocean,Land,Air,EXPRESS |
| Port: | China |

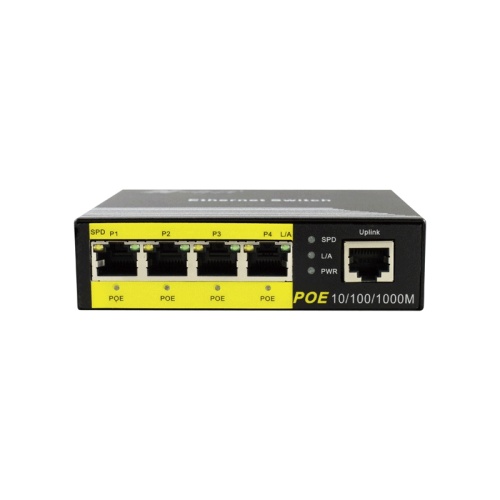

N-net Unmanaged Fast Network POE Switch
NT-W500-AF4 POE Switch is a 4 poe ports Fast Ethernet POE Switch with one uplink port plus 4 ports of Power over Ethernet capability supporting PoE power supply up to maximum of 30W.The total PoE power budget is 60W. With N-net more than 16 years R&D experience, NT-W500-AF4 Unmanaged Fast Network POE Switch provides an ideal solution where office and home users utilize a combination of PoE and non-PoE enabled devices.
Fast Ethernet POE Switch Features
- Built-in efficient switching core to implement flow control and reduce broadcast packets
- Standard Compliance:IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3af/ at PoE
- 10/100Base-TX automatically identify the direct line and cross-line, compatible with various cards, switches, HUB and other Ethernet devices
- Store-and-forward mechanism is employed to avoid packet loss and error frames
- Support full-duplex flow control / half-duplex back pressure mode
- Jumbo frames support a maximum of 1552 bytes
- 52 DC power input
- -20 To 70 ℃ operating temperature to meet a variety of complex environments
- Copper ports support ESD protection
- Support PoE power supply up to maximum of 30W
|
Item |
NT-W500-AF4 10/100M POE Switch |
|
Parameter |
Specifications |
|
Access mode |
10/100Mbps |
|
POE Standard |
IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3af/ at PoE |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode:500km Single fiber single mode: 20/40/60/80km Dual-fiber single mode:20/40/60/80/100km Category-5 twisted pairs: 100m |
|
Port |
5 RJ45 ports: Connecting STP/UTP category-5 twisted pairs, EIA568A/B |
|
Conversion means |
Store and Forward |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
BER |
<10-9 |
|
MTBF |
50,000 hours |
|
LED indicator |
Power Supply : PWR (1~4)UTP Port: POE, L/A |
|
Power supply |
Power Input Range: 48VDC, Power Interface: DC Power Jack |
|
Power Requirement |
52VDC @ 1.25A 60W |
|
Power consumption |
<5W |
|
Operating temperature |
-20~70ºC |
|
Operating humidity |
5%~90% non-condensing |
|
Storage Temperature |
-20~70ºC |
|
Storage humidity |
5%~90% non-condensing |
|
Dimensions |
110.20mm (W)×95.70mm (D)×30.00mm (H) |
|
POE Switch Installation |
Desktop, Wall-mounted & Din-rail |
4 Ports POE Ethernet Switch Application
Small Fast Ethernet POE Switch Package
