Fast Ethernet POE Switch 8 Ports 802.3AF Output

Fast Ethernet POE Switch 8 Ports 802.3AF Output

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Incoterm:: FOB, CIF, FCA

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 4 Days

Transportation:: Ocean, Land, Air, EXPRESS

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	5000 per day
Supply Ability:	5000 pcs around 10-20 days
Payment Type:	L/C,T/T,Paypal,Western Union
Incoterm:	FOB,CIF,FCA
Certificate:	CE, FCC,ISO9001
HS Code:	8536700000
Transportation:	Ocean,Land,Air,EXPRESS
Port:	Shenzhen

Product Description

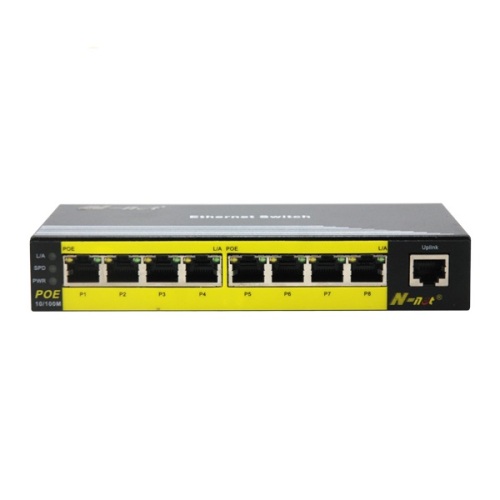

N-net Fast Ethernet POE Switch 8 Ports 802.3AF output

N-net NT-W900-AF8 is a member in the N-net 802.3af Fast Ethernet POE Switch family, provides 8-port 10/100Mbps 802.3at / 802.3af Power over Ethernet + 1 10/100M Port with a total of 130 watts of PoE budget, which is an ideal solution to fulfilling the demand of sufficient PoE power for network applications with Fast Ethernet speed transmission. The eight 802.3af / 802.3at PoE ports feature PoE power injector function which is able to drive 8 IEEE 802.3af compliant powered devices or 3 IEEE 802.3at compliant powered devices. The NT-W900-AF8 8 ports poe switch also offers a simple, cost-effective and non-blocking wire-speed performance

8 Ports Ethernet POE Switch Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets

2. Standard Compliance:IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3af/at PoE

3. 10/100Base-TX automatically identify the direct line and cross-line, compatible with various cards, switches, HUB and other Ethernet devices

4. Store-and-forward mechanism is employed to avoid packet loss and error frames

5. Support full-duplex flow control / half-duplex back pressure mode

6. Jumbo frames support a maximum of 1552 bytes

7. 52 DC power input

8. -20 To 70 ℃ operating temperature to meet a variety of complex environments

9. Copper ports support ESD protection

10. Support PoE power supply up to maximum of 25.5 W

POE Switch 10/100M Specifications

Parameter	Specifications
Access mode	10/100Mbps
Standard	IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3af/at PoE
Wavelength	850nm/1310nm/1550nm
Transmission distance	Dual-fiber multi-mode:2km Single fiber single mode: 20/40/60/80km Dual-fiber single mode:20/40/60/80/100km Category-5 twisted pairs: 100m
Port	9 RJ45 ports: Connecting STP/UTP category-5 twisted pairs, EIA568A/B
Conversion means	Store and Forward
Flow control	Full duplex: flow control; Half duplex: back pressure
Address table	1KB
Buffer space	Built in 512Kb RAM for data buffer
BER	<10-9
MTBF	50,000 hours
LED indicator	Power Supply : PWR Uplink: L/A, SPD (1~8)UTP Port: POE, L/A
Power supply	Power Input Range: 48VDC, Power Interface: DC Power Jack
Power Requirement	48VDC @ 2.5A 120W
Power consumption	<5W
Operating temperature	-20~70ºC
Operating humidity	5%~90% non-condensing
Storage Temperature	-20~70ºC
Storage humidity	5%~90% non-condensing
Dimensions	170.50mm (W)×80.50mm (D)×30.00mm (H)
Weight
