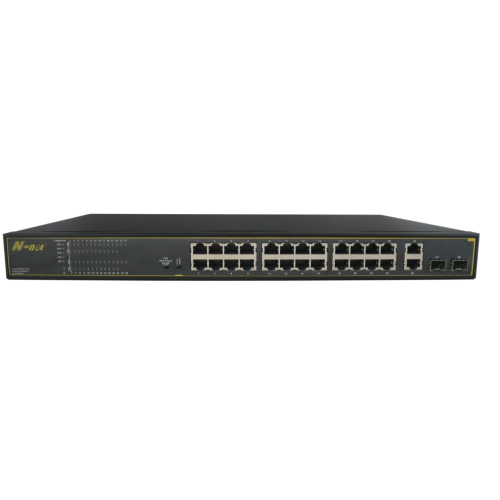

28-port unmanaged fast Ethernet PoE Switch

Overview

NC2244GPE is 28-port PoE unmanaged switch series that supports up to 24 10/100M PoE ports, 2 10/100/1000M ports and 2 1000M SFP slots. 24 10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard, single port PoE power up to 30W.With IEEE802.3atPOE switch, the port output power can reach 30W, and the power available to the receiving device is 25.4w. It provides three modes, Extend, Default and VLAN, to adapt to various complex environments.Generally speaking, POE switch is a switch that supports network cable power supply, which can not only realize the data transmission function of common switch, but also supply power to network terminal at the same time. At the same time, it supports the PoE auto-check function, which is specially designed to solve the problem of equipment frozen and restart the frozen equipment automatically, which greatly reduces the difficulty of project maintenance.

It supports the PoE usage rate indication, which is convenient to show the consumption of PoE power.

It has a high anti-interference ability, the product supports 6KV surge protection, and 6KV/8KV ESD protection.

POE, also known as POL (Power over LAN) or Active Ethernet, sometimes referred to simply as Ethernet Power supply, is the latest standard specification for transmitting data and Power simultaneously over existing Ethernet cables, while maintaining compatibility with existing Ethernet systems and users.

It supports wall hanging and desktop installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.

This switch series contain 450W and 300W power module, two versions to choose.

Features

• With 24*10/100M PoE ports, 2*10/100/1000M ports and 2*1000M SFP slots;
• The maximum PoE power of single port is 30W;
• Provides three modes of Extend, Default and VLAN to adapt to various complex environments;
• It supports the PoE auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports` output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering;
• Supports the PoE usage rate indication, which is convenient to show the consumption of PoE power;
• 6KV surge protection, 6KV/8KV ESD protection;

• Supports wall hanging and desktop installation.

Specifications
