Fast Industrial Ethernet Poe Switch

Overview

Aggregation
We have already touched on the characteristics of port aggregation before. This method is equivalent to using multiple ports for cascading at the same time. It provides higher interconnection bandwidth and line redundancy, making the network have certain reliability.

NT-IN126-4POE is Industrial Fast Ethernet POE Switch with 8 ports. It supports 6 port 10/100BASE-T and 2 port 100Base-X.

Stacking method
The stacking of switches is the fastest and most convenient way to expand ports, and the bandwidth after stacking is several tens of times the speed of a single switch port. However, not all switches support stacking, which depends on whether the brand or model of the switch supports stacking; and also requires the use of special stacking cables and stacking modules; finally, note that switches in the same stack must be of the same brand .

NT-IN126-4POE Industrial Fast Ethernet POE Switch series is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space.

Layered approach
This method is generally used in more complicated switch structures, which can be divided into access layer, convergence layer, and core layer according to functions.

NT-IN126-4POE Industrial Switch series can support 4 ports POE function. Without power and wires, can power supply for HD IP Camera, wireless AP.IP phone and so on. Our Industrial Fiber Switch support IEEE802.3at, 25.5W output. It supports in dual fiber single mode.

postscript
As an important connection device of the network, the switch is quite frequent in actual use. For ordinary home users, the more complex application is the cascade structure of the switch; and advanced applications such as three-layer routing and stacking are generally used in enterprises. [1]

Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard::IEEE802.3u 100BASE-FX,IEEE802.3u 100BASE-TX. IEEE802.3 10BASE-T.
3. IEEE802.3x Flow Control. IEEE802.3at
4. 10/100Base-TX can automatically identify the direct line and cross-line, is compatible with various cards, switches, HUB and other Ethernet devices.
5. It uses a store-and-forward mechanism to avoid packet loss and error frames
6. Support 6 standalone 10M/100Mbps Adaptive switched twisted-pair cable. Realize electricity back-up and mutil-user access
7. This Industrial Fast Ethernet POE Switch Support jumbo frame up to 1600Bytes
8. Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
9. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
10. -40 To 85℃ operating temperature to meet a variety of complex environments
11. IP40 protection standard housing
12. Power port and Ethernet port supports ESD protection and EFT protection
13. DIN rail and panel mounting for efficient usage
14. Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
15. Support POE power supply up to 25.5W (optional)
16. Provide up to 4K MAC address entries and built in 1.25 Mb RAM
17. Dual fiber single mode

Specifications

Certification

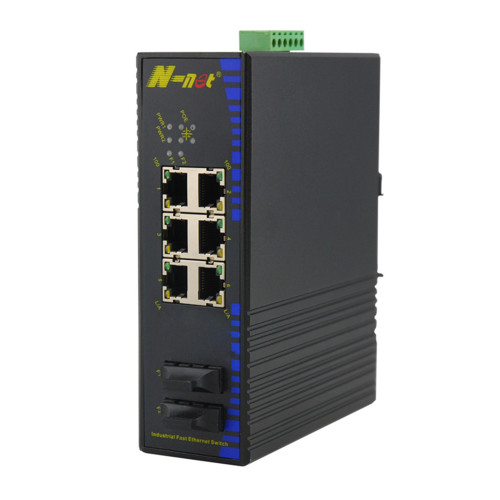

Product Picture
