Unmanaged 10/100M POE switch

N-net Unmanaged 10/100M PoE switch

Port aggregation
This is a kind of encapsulation technology. It is a point-to-point link.

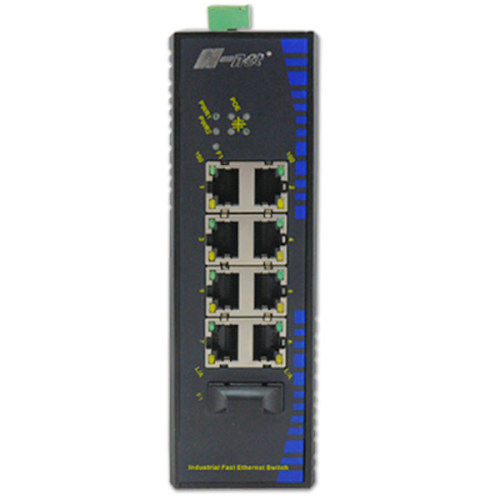

NT-IN118S-20 is Industrial Fast Ethernet Media Converter with 9 ports. It supports 8 port 10/100BASE-T and 1 port 100Base-X.it is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space.

Both ends of the link may be switches, switches and routers, or hosts and switches or routers. Based on the port aggregation (Trunk) function, allowing parallel transmission between the switch and the switch, the switch and the router, the host and the switch or the router through two or more ports to provide higher bandwidth, greater throughput, and greatly provide the entire Network capabilities. [3]

What is more, can support 4 ports PoE function. Without power and wires, can power supply for HD IP Camera, wireless AP.

Cascade connection
This is the most commonly used networking method, which is connected through the cascade port (UpLink) on the switch. It should be noted that switches cannot be cascaded without limit, and cascading more than a certain number of switches will eventually cause a broadcast storm and cause serious degradation of network performance.

IP phone and so on. Our PoE unmanaged Fast Ethernet Media Converter support IEEE802.3at, 25.5W output. It supports single mode dual fiber.

Unmanaged PoE Switch Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard::IEEE802.3u 100BASE-FX,IEEE802.3u 100BASE-TX. IEEE802.3 10BASE-T.
3. IEEE802.3x Flow Control. IEEE802.3at
4. 10/100Base-TX can automatically identify the direct line and cross-line, is compatible with various cards, switches, HUB and other Ethernet devices.
5. It uses a store-and-forward mechanism to avoid packet loss and error frames
6. Support 8 standalone 10M/100Mbps Adaptive switched twisted-pair cable. Realize electricity back-up and mutil-user access
7. Support jumbo frame up to 1600Bytes
8. Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
9. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
10. -40 to 85℃ operating temperature to meet a variety of complex environments
11. IP40 protection standard housing
12. Power port and Ethernet port supports ESD protection and EFT protection
13. DIN rail and panel mounting for efficient usage
14. Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
15. Support PoE power supply up to 25.5W (optional)
16. Provide up to 4K MAC address entries and built in 1.25 Mb RAM
17. Provide up to 4K MAC address entries and built in 1.25 Mb RAM
18. Dual fiber single mode

Unmanged Industrial Ethernet Switch Specifications

Unmanged Industrial Ethernet Switch Application

Unmanaged 10/100M PoE Switch Packing
