Industrial low speed POE switch

Overview

The fourth layer switch can not only complete the end-to-end switching, but also determine or limit its switching traffic according to the application characteristics of the port host.

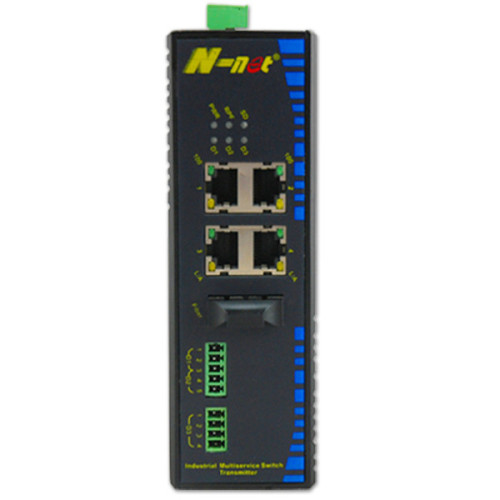

NT-IN114D Industrial Fast Ethernet POE switch series is Industrial Switch equipping 4 10/100M UTP port with low-speed data port. It provides 4 10/100Base-T ports, 3 low-speed data port and 1100FX port.

To put it simply, the fourth layer switch is based on the transmission process of data packets at the transport layer. It is a new type of LAN switch based on the user application switching needs of the TCP / IP protocol application layer.

With strictly industrial design, it is fundamental guarantee for stability and practicability to flexible extends transmitting distance of the Ethernet and low speed data in the extreme industrial environment.

The layer 4 switch supports all protocols below TCP / UDP layer 4 and can distinguish the application type of the data packet according to the TCP / UDP port number, thereby achieving access control and service quality assurance at the application layer.

Apply NT-IN114D Industrial Fast Ethernet POE switch equipping low-speed data port with NT-IN111D industrial media converter, the buffering of heavy traffic burst, rate smoothing of network service and remote transmission of low-speed data can perfectly resolve, having the leading feature advantage in this field.

You can view the contents of the source and destination addresses of the Layer 3 packet header, and you can take corresponding actions based on the observed information to achieve the key functions of bandwidth allocation, fault diagnosis, and access control of the TCP / IP application data flow. T

NT-IN114D Industrial Fiber Switch can install in control cabinet by adopting optional way of DIN-RIAL or Wall mount. It is a compact product, supporting wide working temperature, redundant power input, IP40 protection, LED indicator light, being a best choice for the industrial special application and a reliable solution for your industrial Ethernet connection.

he fourth layer switch optimizes the network through task distribution and load balancing, and provides detailed traffic statistics and accounting information to solve network congestion, network security and network management issues at the application level, making the network intelligent and manageable .

NT-IN114D-AT (AF) Industrial Switch series is adding PoE function, equipping 4 POE power port. No need of the power or power cable, the high definition IP camera, wireless AP, IP telephone device can be powered up by the Poe technology through a UTP. For N-net Poe unmanaged industrial switch support IEEE802.3at standard, output 25.5W.

Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard: IEEE802.3/u, 10Base-T, 100BASE-TX, IEEE802.3af, IEEE802.3at
3. 10/100Base-TX can automatically identify the direct line and cross-line, is compatible with Various cards, switches, HUB and other Ethernet devices
4. It uses a store-and-forward mechanism to avoid packet loss and error frames
5. Provide 4 independent 10/100M Base-TX ports to UTP redundant and multi user access
6. Support Max up to 1552Bytes packet transmission
7. Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
8. Support 3 low-speed data port, each can set as a separated RS232,RS485 or contact closure type.
9. Low-speed data passage adopt Time Division Multiplexing transmit, that makes low delay and easy apply without occupy IP address.
10. Low-speed data port support 0-115200bps speed
11. Low-speed data port support multi protection from lightning, surge, overvoltage and ESD
12. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
13. Support remote power off detection and indication
14. -40 To 80℃ operating temperature to meet a variety of complex environments
15. IP40 protection standard housing
16. Power port and Ethernet port supports ESD protection and EFT protection
17. DIN rail and panel mounting for efficient usage
18. Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
19. Support POE power supply up to 25.5W for single port
20. 7Gbps Non-blocking switching bandwidth line speed, 2K MAC address automatic learning and 16Mb Internal cache
