Industrial 10/100M Ethernet to Fiber PoE Ethernet switch

Overview

Three-tier concept editor
Link layer
Use the MAC address to complete the operation of the frame.

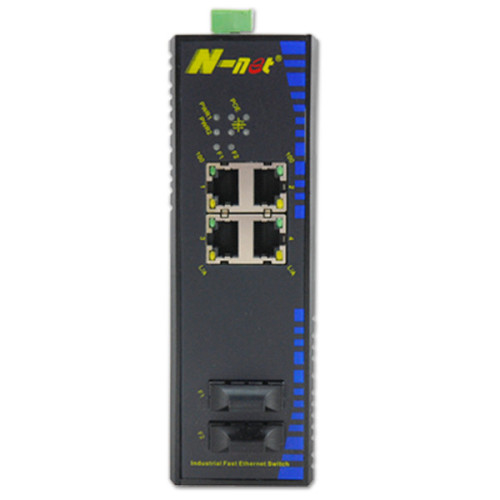

The N-net NT-IN124 Industrial Switch is unmanaged 2 fiber POE switch with 6 ports. It supports 4 port 10/100BASE-T and 2 port 100Base-X.

The IP address of the switch is used for management purposes. The IP address of the switch is actually the IP of the VLAN.
One VLAN and one broadcast domain, access between hosts in different VLANs is equivalent to access between networks, and it must be achieved through routing.

NT-IN124 Industrial Fast Ethernet POE Switch series is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space.

The access of hosts between different VLANs has the following situations:
(1) Two VLANs are respectively connected to two physical interfaces of the router. This is the basic application of the router.

NT-IN124 Industrial Fiber Switch series can support 4 ports POE function. Without power and wires, can power supply for HD IP Camera, wireless AP, IP phone and so on. Our Industrial Ethernet Switch support IEEE802.3at, 25.5W output.

(2) Two VLANs are connected to a physical interface of the router through trunk. This is a one-arm routing applied to sub-interfaces.
(3) Use a switch with a three-layer switching module. Cisco's 3550 and Huawei's 3526 are basic Layer 3 switches.
1) Use the IP address of the VLAN as a gateway to implement Layer 3 switching, which requires setting the IP address of the VLAN.
2) Set the port to work at Layer 3, require the port to set no switchport, and then set the port's IP address.

Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard: IEEE802.3u 100BASE-FX, IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T, IEEE802.3x Flow Control, IEEE802.3at
3. 10/100Base-TX can automatically identify the direct line and cross-line, is compatible with various cards, switches, HUB and other Ethernet devices.
4. This Industrial Network Switch uses a store-and-forward mechanism to avoid packet loss and error frames
5. Support 4 standalone 10M/100Mbps Adaptive switched twisted-pair cable. Realize electricity back-up and mutil-user access
6. Support jumbo frame up to 1600Bytes
7. Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
8. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
9. -40 To 80℃ operating temperature to meet a variety of complex environments
10. IP40 protection standard housing
11. Power port and Ethernet port supports ESD protection and EFT protection
12. DIN rail and panel mounting for efficient usage
13. Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
14. Support POE power supply up to 25.5W (optional)
15. Provide up to 4K MAC address entries and built in 1.25 Mb RAM
