8 fiber ports POE switch
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, FCA
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000pcs/day |
| Supply Ability: | 5000pcs around 10-20 days |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,FCA |
| Certificate: | CE, FCC,ISO900 |
| HS Code: | 8536700000 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen,Yantian |
Overview
The existing Profibus network segment can be connected to the ProfiNet network through a proxy device (proxy), so that the entire Profibus device and protocol can be used intact in Pet.

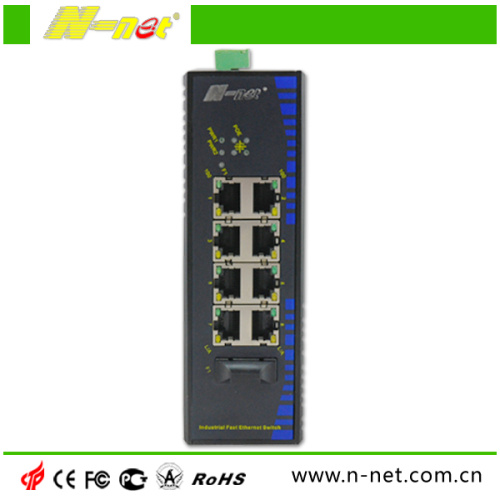

NT-IN118S-20 is Industrial 8 fiber ports POE switch. It supports 8 port 10/100BASE-T and 1 port 100Base-X.
Traditional Profibus devices can communicate with COM objects on ProFiNET through proxies, and call between COM objects through the OLE automation interface.
NT-IN118S-20 8 fiber ports POE switch is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space.
Ethernet，Ethernet / IP is a protocol system suitable for industrial environment applications.
NT-IN118S-20-AT (AF) 8 fiber ports POE switch series can support 4 ports POE function.
Ethernet / IP
Without power and wires, can power supply for HD IP Camera, wireless AP.IP phone and so on. Our POE unmanaged Fast Ethernet Media Converter support IEEE802.3at, 25.5W output. It supports single mode dual fiber.
Features
Built-in efficient switching core to implement flow control and reduce broadcast packets
Standard::IEEE802.3u 100BASE-FX,IEEE802.3u 100BASE-TX. IEEE802.3 10BASE-T.IEEE802.3x Flow Control. IEEE802.3at
10/100Base-TX can automatically identify the direct line and cross-line, is compatible with various cards, switches, HUB and other Ethernet devices.
This 8 fiber ports POE switch uses a store-and-forward mechanism to avoid packet loss and error frames
Support 8 standalone 10M/100Mbps Adaptive switched twisted-pair cable. Realize electricity back-up and mutil-user access
Support jumbo frame up to 1600Bytes
Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
-40 To 85℃ operating temperature to meet a variety of complex environments
IP40 protection standard housing
Power port and Ethernet port supports ESD protection and EFT protection
DIN rail and panel mounting for efficient usage
Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
Support POE power supply up to 25.5W (optional)
Provide up to 4K MAC address entries and built in 1.25 Mb RAM
Provide up to 4K MAC address entries and built in 1.25 Mb RAM
Dual fiber single mode
Specifications:
|
Parameter |
Specifications |
|
Design Level |
Industrial grade IP40 design standards |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3u 100BASE-FX,IEEE802.3u 100BASE-TX. IEEE802.3 10BASE-T. IEEE802.3x Flow Control. IEEE802.3at |
|
Wavelength |
1310nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode:2 km Dual-fiber single mode:20/40/60/80/100 /120 km Category-5 twisted pairs: 100m |
|
Port |
Eight RJ45 port: Connecting STP/UTP category-5 twisted pairs, EIA568A/B Two optical port: Single-mode :SC / FC/LC |
|
Conversion means |
Store and Forward mode |
|
Address table |
4K |
|
Buffer space |
1.25 Mbit |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
Delay |
store-and-forward:9.6us |
|
BER |
<10-9 |
|
MTBF |
50,000 hrs |
|
LED indicator |
POE1 ( POE1 power on/off).POE2 ( POE2 power on /off).POE3 ( POE3 power on/off). POE4 ( POE4 power on/off),(1~8) UTP Port: L/A ,100 PWR1(PWR1 power on/off) ,PWR2(PWR2 power on/off) F1(F1 Link/transmission) |
|
Power supply |
Power Input Range: 12 ~ 48VDC/24VAC , 6-PIN Terminals, Redundant dual power |
|
Power consumption |
7W |
|
Storage humidity |
5%~90% non-condensing |
|
Operating humidity |
5%~90% non-condensing |
|
Operating temperature |
-40~85℃ |
|
Storage Temperature |
-40~85℃ |
|
Dimensions |
155mm×125mm×50mm (W×D×H) |
|
Certification |
|
|
EMI |
FCC Part 15, CISPR (EN55022) class A |
|
EMC |
FCC,CE |
|
EMS |
EN61000-4-2 (ESD), Level 4 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 4 EN61000-4-5 (Surge), Level 4 EN61000-4-6 (CS), Level 3 EN61000-4-8, Level 5 EN61000-4-11 |
|
Shock |
IEC 60068-2-27 |
|
Free Fall |
IEC 60068-2-32 |
|
Vibration |
IEC 60068-2-6 |
