5 ports fast Ethernet fiber switch
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, FCA
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000pc/day |
| Supply Ability: | 5000pcs around 10-20 days |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,FCA |
| Certificate: | CE,FCC,ISO9001 |
| HS Code: | 8536700000 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen,Yantian |
Overview
With RJ45 technology, industrial-grade Sub-D connection technology and Fast Connect connection technology for installing special shielded cables, it ensures fast on-site cable installation work

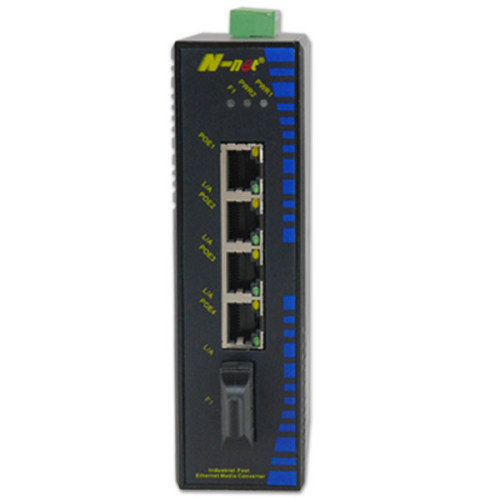

NT-IN114 5 ports fast Ethernet fiber switch series is four-port 10/100Base-TX to one-port 100Base-FX Industrial Fast Ethernet switch. Simple and efficient signaling device continuously monitors network elements
The converters are able to extend transmission distance of network up to 120Km via fiber port, and the UTP port can operate at 10M or 100M application.
Compliant with SNMP (simple network management protocol)
Web-based network management can be used
NT-IN114 5 ports fast Ethernet fiber switch series is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space.
Use VB / VC or configuration software to monitor and manage the network [4]
Technical features
It accepts an integrated power supply with a wide range of voltages for worldwide operation. It can also be equipped with dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Industrial Ethernet technology has the advantages of low price, stable and reliable, high communication rate, rich software and hardware products, wide application, and mature support technology. It has become one of the most popular communication networks.
NT-IN114 5 ports fast Ethernet fiber switch series is complied with IEEE 802.3at High Power over Ethernet technology (optional). It is backward compatible with 802.3af PoE standards to allow users flexibly deploy standard and high powered devices simultaneously with no need of software configuration. With Data and Power over Ethernet from one unit, NT-IN114 5 ports fast Ethernet fiber switch series can reduce cables deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.
Features
Built-in efficient switching core to implement flow control and reduce broadcast packets
Standard: IEEE802.3u, 100BASE-FX, IEEE802.3u, 100BASE-TX, IEEE802.3, 10BASE-T, IEEE802.3x Flow Control, IEEE802.3at
10/100Base-TX can automatically identify the direct line and cross-line, is compatible with Various cards, switches, HUB and other Ethernet devices
It uses a store-and-forward mechanism to avoid packet loss and error frames
Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
Support jumbo frame up to 1552K(store-forward mode)
12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection² -40 To 80℃ operating temperature to meet a variety of complex environments
IP40 protection standard housing
Power port and Ethernet port supports ESD protection and EFT protection
DIN rail and panel mounting for efficient usage
Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
Support POE power supply up to 25.5W(optional)
Specifications
|
Parameter |
Specifications |
|
Design Level |
Industrial grade IP40 design standards |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3u 100BASE-FX, IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T, IEEE802.3x Flow Control, IEEE802.3at |
|
Wavelength |
1310nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode:2 km Single fiber single mode: 20/40/60/80/100 km Dual-fiber single mode:20/40/60/80/100 /120 km Category-5 twisted pairs: 100m |
|
Port |
Four RJ45 port: Connecting STP/UTP category-5 twisted pairs, EIA568A/B One optical port: Multi-mode :SC / FC/LC(50/125, 62.5/125μm) Single mode : SC / FC/LC (8.3/125, 8.7/125, 9/125 or 10/125μm) |
|
Conversion means |
Store and Forward mode |
|
Address table |
2K |
|
Buffer space |
Built in 512Kb RAM for data buffer |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
BER |
<10-9 |
|
MTBF |
50,000 hrs |
|
LED indicator |
Power Supply : PWR1, PWR2 UTP Port: POE(Green), L/A(Orange) Fiber Port: FX1 |
|
Power supply |
Power Input Range: 12 ~ 48VDC/24VAC , 6-PIN Terminals, Redundant dual power |
|
Power consumption |
<5W (without PSE function) |
|
Operating temperature |
-40~80ºC |
|
Operating humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40~80ºC |
|
Storage humidity |
5%~90% non-condensing |
|
Dimensions |
140mm (W)×110mm (D)×40mm (H) |
|
Weight |
|
|
Certification |
|
|
EMI |
FCC Part 15, CISPR (EN55022) class A |
|
EMC |
FCC,CE |
|
EMS |
EN61000-4-2 (ESD), Level 4 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 4 EN61000-4-5 (Surge), Level 4 EN61000-4-6 (CS), Level 3 EN61000-4-8, Level 5 EN61000-4-11 |
|
Shock |
IEC 60068-2-27 |
|
Free Fall |
IEC 60068-2-32 |
|
Vibration |
IEC 60068-2-6 |
|
Green product |
RoHS |
