6 ports fast ethernet switch

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Incoterm:: FOB, CIF, FCA

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 4 Days

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen, Yantian

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	5000pcs/day
Supply Ability:	5000pcs around 10-20 days
Payment Type:	L/C,T/T,Paypal,Western Union
Incoterm:	FOB,CIF,FCA
Certificate:	CE,FCC,ISO9001
HS Code:	8536700000
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Yantian

Product Description

Overview

4. Great potential for sustainable development

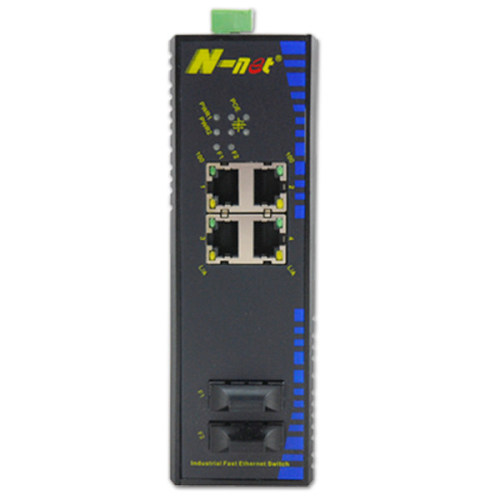

NT-IN124 is Industrial 6 ports fast ethernet switch.

The introduction of Ethernet will provide the possibility for the subsequent development of the control system.

It supports 4 port 10/100BASE-T and 2 port 100Base-X.

Users do not need to invest in their own research in technology upgrades.

NT-IN124 6 ports fast ethernet switch series is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space.

For this, any existing fieldbus technology is unmatched.

NT-IN124 6 ports fast ethernet switch series can support 4 ports POE function. Without power and wires, can power supply for HD IP Camera, wireless AP, IP phone and so on. Our POE unmanaged Fast Ethernet Media Converter support IEEE802.3at, 25.5W output.

At the same time, the development of robotics and intelligent technologies all require higher bandwidth and performance of communication networks, and higher flexibility of communication protocols. These requirements can be met by Ethernet [3]

Features

Built-in efficient switching core to implement flow control and reduce broadcast packets

Standard: IEEE802.3u 100BASE-FX, IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T, IEEE802.3x Flow Control, IEEE802.3at

10/100Base-TX can automatically identify the direct line and cross-line, is compatible with various cards, switches, HUB and other Ethernet devices.

This 6 ports fast ethernet switch uses a store-and-forward mechanism to avoid packet loss and error frames

Support 4 standalone 10M/100Mbps Adaptive switched twisted-pair cable. Realize electricity back-up and mutil-user access

Support jumbo frame up to 1600Bytes

Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode

12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection

-40 To 80℃ operating temperature to meet a variety of complex environments

IP40 protection standard housing

Power port and Ethernet port supports ESD protection and EFT protection

DIN rail and panel mounting for efficient usage

Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users

Support POE power supply up to 25.5W (optional)

Provide up to 4K MAC address entries and built in 1.25 Mb RAM

Specification

Parameter	Specifications
Design Level	Industrial grade IP40 design standards
Access mode	10/100Mbps
Standard	IEEE802.3u 100BASE-FX, IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T, IEEE802.3x Flow Control, IEEE802.3at
Wavelength	1310nm/1550nm
Transmission distance	Dual-fiber multi-mode:2 km Single fiber single mode: 20/40/60/80/100 km Dual-fiber single mode:20/40/60/80/100 /120 km Category-5 twisted pairs: 100m
Port	Four RJ45 port: Connecting STP/UTP category-5 twisted pairs, EIA568A/B Two optical port: Multi-mode :SC / FC/LC(50/125, 62.5/125μm) Single mode : SC / FC/LC (8.3/125, 8.7/125, 9/125 or 10/125μm)
Conversion means	Store and Forward mode
Address table	4K
Buffer space	1.25 Mbit
Flow control	Full duplex: flow control; Half duplex: back pressure
Delay	store-and-forward:9.6us,cut-through:0.9us
BER	<10-9
MTBF	50,000 hrs
LED indicator	POE1 ( POE1 power on/off), POE2 ( POE2 power on /off), POE3 ( POE3 power on/off), POE4 ( POE4 power on/off) POW1 (POW1 power on/off), POW2(POW2 power on/off) F1(F1 Link/transmission), F2(F2 Link/transmission)
Power supply	Power Input Range: 12 ~ 48VDC/24VAC , 6-PIN Terminals, Redundant dual power
Power consumption	<5W (without PSE function)
Storage humidity	5%~90% non-condensing
Operating humidity	5%~90% non-condensing
Operating temperature	-40~80℃
Storage Temperature	-40~80℃
Dimensions	155mm×125mm×50mm (W×D×H)

Certification
EMI	FCC Part 15, CISPR (EN55022) class A
EMC	FCC,CE
EMS	EN61000-4-2 (ESD), Level 4 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 4 EN61000-4-5 (Surge), Level 4 EN61000-4-6 (CS), Level 3 EN61000-4-8, Level 5 EN61000-4-11
Shock	IEC 60068-2-27
Free Fall	IEC 60068-2-32
Vibration	IEC 60068-2-6
