3 ports industrial fast ethernet switch
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CIF, EXW, FCA
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air, Express
- Port:
- China, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 2000 pcs per day |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CIF,EXW,FCA |
| Certificate: | ISO9000, CE, FCC |
| HS Code: | 8536700000 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | China,Shenzhen |
Overview
It is a 3-port 100M industrial switch that supports up to 2*10/100M downlink ports, 1*100M SFP port.
It has the characteristics of reliable work, strong and durable, high performance and so on.
Supports relay alarm for power off, network broken.
6KV surge protection, 6KV contact/8KV air ESD protection.
Supports wall and desktop installation, which is reliable and durable, and can be used in security
network video monitoring, network engineering and other occasions.
Feature
With 2*10/100M RJ45 ports and 1*100M SFP port.
Supports relay alarm for power off, network broken.
6KV surge protection, 6KV contact / 8KV air ESD protection.
Supports working temperature -40℃～75℃.
Supports wall and desktop installation, which is reliable and durable, and can be used in security
network video monitoring, network engineering and other occasions.
Application

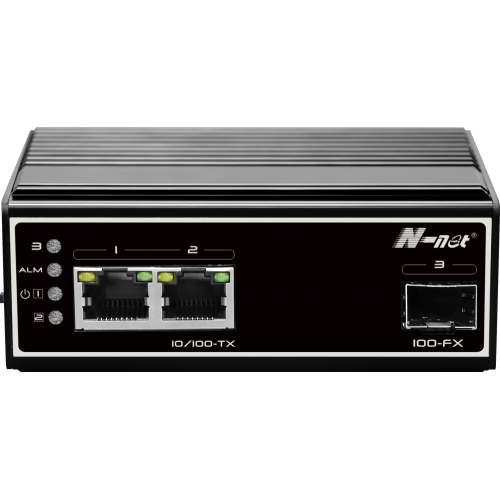

Panel diagram
Specification
|
Item |
|
|
|
Power |
Power supply |
Power by power adapter |
|
Range of voltage |
DC12V~60V |
|
|
Consumption |
Self-consumption<5W |
|
|
Protction |
Ethernet ports parameter |
ports1~2: 10/100Base-TX RJ45 ports3: 100Base-FX SFP |
|
Relay alarm |
1 channel relay alarm output for power off, ports link down |
|
|
Cable and distance |
Use cat5e/6, 100m max |
|
|
Switch parameter |
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3z |
|
Switch fabric |
0.6Gbps |
|
|
Thoughput |
0.446Mpps |
|
|
Buffer |
1M |
|
|
MAC address table |
8K |
|
|
Indicator |
Power |
2 *red |
|
Uplink indicator light |
Green LEDs indicate Link/Act |
|
|
|
Downlink indicator light |
On RJ45 green LEDs indicate Link/Act |
|
Protection |
Surge |
6KV, standard: IEC61000-4-5 |
|
ESD |
6KV: contact / 8KV: air, standard:IEC61000-4-2 |
|
|
Enviroment |
Working temperature |
-40℃~75℃ |
|
Storage temperature |
-40℃~85℃ |
|
|
Humidity |
0~95%(No condensation) |
|
|
Structure |
Dimension(L×W×H) |
101mm×65mm×36mm |
|
Material |
Aluminum alloy |
|
|
Colour |
Black |
|
|
Net-weight |
300g |
|
