2-port industrial fast ethernet switch

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50000
Supply Ability:	50000
Payment Type:	L/C,T/T,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	CE, FCC,ISO9001
HS Code:	8517622990
Transportation:	Ocean,Land,Air,EXPRESS
Port:	China,Shenzhen

Product Description

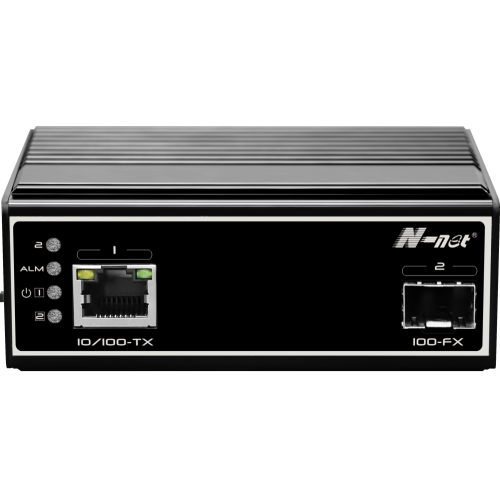

This is a 2-port industrial switch that supports up to 1 *10/100M RJ45 port and 1*100M SFP slot.

It supports relay alarm for power off, network broken.

It has the characteristics of reliable work, strong and durable, high cost performance and so on.

It can be used in security network video monitoring system, network engineering and other occasions.

With 1*10/100M RJ45 port and 1*100M port. Supports

Supports 6KV surge protection, 6KV contact / 8KV air ESD protection.

Supports working temperature -40℃～75℃.

It has the characteristics of reliable work, strong and durable, high cost performance and so on.

It can be used in security network video monitoring system, network engineering and other occasions.

Item
Power	Power supply	Power by power adapter
	Range of voltage	DC12V~60V
	Consumption	Self-consumption<5W
Protction	Ethernet ports parameter	ports1: 10/100Base-TX RJ45 ports2: 100Base-FX SFP
	Relay alarm	1 channel relay alarm output for power off, ports link down
	Cable and distance	Use cat5e/6, 100m max
Switch parameter	Standard	IEEE802.3, IEEE802.3u
	Switch fabric	0.4Gbps
	Thoughput	0.2976Mpps
	Buffer	1M
	MAC address table	8K
Indicator	Power	2 *red
Indicator	Ethernet ports 2	Green LEDs indicate Link/Act
	Ethernet ports 1	On RJ45 green LEDs indicate Link/Act
Protection	Surge	6KV, standard: IEC61000-4-5
Protection	ESD	6KV: contact / 8KV: air, standard:IEC61000-4-2
Enviroment	Working temperature	-40℃~75℃
	Storage temperature	-40℃~85℃
	Humidity	0~95%(No condensation)
Structure	Dimension(L×W×H)	101mm×65mm×36mm
	Material	Aluminum alloy
	Colour	Black
	Net-weight	300g
