10-port full gigabit managed Industrial None-PoE switch
Your message must be between 20 to 2000 characters
Contact NowOverview

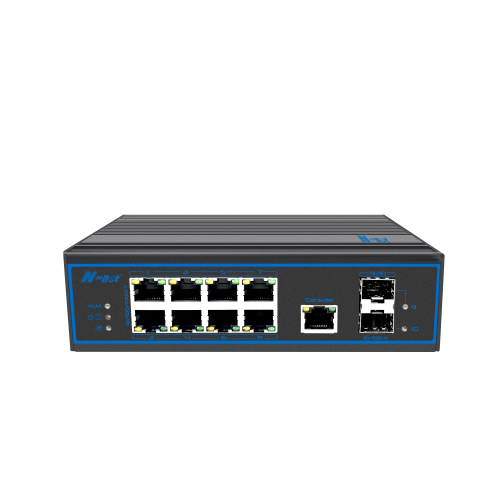

NIE8082GM is a 10-port full gigabit managed Industrial None-PoE switch that supports up to 8*10/100/1000M downlink ports, 2* 1000M SFP ports. 8*10/100/1000M ports support , conforming to IEEE 802.3af/at standard.
It supports L2 managment, such as QoS, VLAN, MSTP, Multi-brocast, ports management.
It supports 6KV surge protection, 8KV contact/15KV air ESD protection.
It supports wall hanging, desktop and Din-rail installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
Features
- With 8*10/100/1000M downlink ports, 2*1000M SFP ports, with L2 network management;
- Support L2 managment, such as QoS, VLAN, MSTP, Multi-brocast, ports management;
- 6KV surge protection, 8KV contact /15KV air ESD protection;
- Support working temperature -40℃~75℃.
Specifications
|
Parameter |
Specifications |
|
Power supply |
Powered by power adaptor |
|
Range of voltage |
DC 12~60V |
|
Consumption |
Self consumption<20W |
|
Downlink ports |
Ports 1~2 10/100/1000Base-T 90W RJ45(IEEE802.3bt,also support IEEE 802.3af/at) 3~8 10/100/1000Base-T 30W RJ45(IEEE 802.3af/at) |
|
Uplink ports |
Ports 9~10 1000M SFP slots |
|
Cable and distance |
Use cat5e/6,100m max |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3z |
|
Switch fabric |
20Gbps |
|
Though put |
14.88Mpps |
|
Buffer |
1M |
|
MAC address table |
8K |
|
Indicator |
Power: 2 *red ; Uplink 9~10: green LEDs indicate Link/Act Downlink 1~8: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE |
|
Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 8KV: contact/15KV: air, standard:IEC61000-4-2 |
|
Working temperature |
-40℃~75℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(No condensation) |
|
Dimension(L×W×H) |
165 mm×115 mm×50mm |
|
Material |
Aluminium |
|
Colour |
Black |
|
Net-weight |
500g |
