10 ports full gigabit Managed Industrial PoE switch

Overview

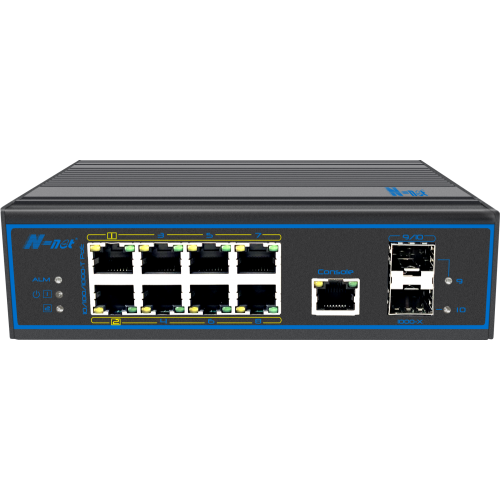

NIE8082PGM is a 10-port full gigabit industrial managed PoE switch that supports up to 8*10/100/1000M PoE downlink ports, 2* 1000M SFP ports. 8*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard, support 2 port PoE power each up to 90W,6 port PoE power each up to 30W.

It supports L2 managment, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management.

It supports 6KV surge protection, 8KV contact/15KV air ESD protection.

It supports wall hanging, desktop and Din-rail installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.

Features

With 8*10/100/1000M PoE downlink ports, 2*1000M SFP ports, with L2 network management;

Supports 2 port PoE power each up to 90W, 6 port PoE power each up to 30W;

Supports L2 managment, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management;

6KV surge protection, 8KV contact /15KV air ESD protection;

Supports working temperature -40℃～75℃.

Specifications

Parameter	Specifications
Power supply	Powered by power adaptor
Range of voltage	DC 48~57V
Consumption	Self consumption<20W
Downlink ports	Ports 1~2 10/100/1000Base-T 90W PoE RJ45(IEEE802.3bt,also support IEEE 802.3af/at)  3~8 10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at)
Uplink ports	Ports 9~10 1000M SFP slots
Cable and distance	Use cat5e/6,100m max
Standard	IEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric	20Gbps
Though put	14.88Mpps
Buffer	1M
MAC address table	8K
Indicator	Power: 2 *red ;  Uplink 9~10: green LEDs indicate Link/Act  Downlink 1~8: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE
Protection	Surge: 6KV, standard: IEC61000-4-5     ESD: 8KV: contact/15KV: air, standard:IEC61000-4-2
Working temperature	-40℃~75℃
Storage temperature	-40℃~85℃
Humidity	0~95%(No condensation)
Dimension(L×W×H)	165 mm×115 mm×50mm
Material	Metal
Colour	Black
Net-weight	500g
