Unmanaged Industrial POE Switch

Overview

The bandwidth potential of single-mode in single-mode fiber transceivers makes it the best choice for high-speed and long-distance data transmission.

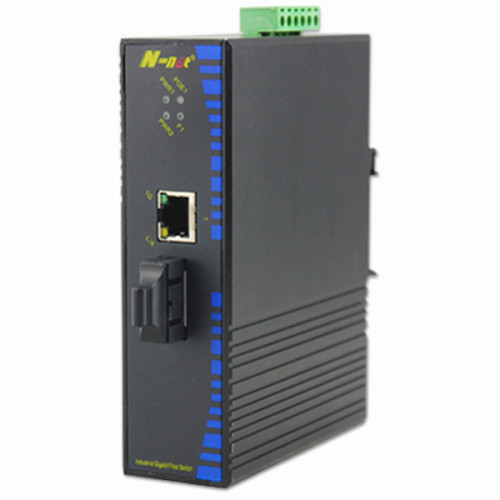

NT-IN311 Industrial Gigabit Media Converter series are 10/100/1000Base-TX to 1000Base-SX/LX unmanaged industrial POE switch.

Single-mode fiber transceivers are especially suitable for various broadband data networks such as telecommunications, cable TV, railways, military, financial securities, customs, civil aviation, shipping, power, water conservancy and oil fields, etc.

It will extend transmission distance of network up to 100Km via fiber port, and the UTP port can operation at 10M, 100M and 1000M application,it is packaged in a special compact IP40 metal case that allows either DIN rail or panel mounting for easy installation at control cabinet and accepts an integrated power supply with a wide range of voltages for worldwide operation.

The domain of the web. It is the most ideal application equipment for broadband campus network, broadband cable TV network and intelligent broadband community fiber-to-the-building and fiber-to-the-home.

It can also be equipped with dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Solve the problem of long-distance data transmission.EMC protection against electromagnetic radiation should also comply with FCC Part 15 standards. In addition, there are many aspects that need to be understood and paid attention to when purchasing.

It complied with IEEE 802.3at High Power over Ethernet technology (optional). With Data and Power over Ethernet from one unit, NT-IN311 Industrial Media Converter series shall reduce cables deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard:IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX, IEEE802.3x Flow Control, IEEE802.3at PSE
3. 10/100/1000Base-TX can automatically identify the direct-line(MDI) and cross-line(MDIX), is compatible with Various cards, switches, HUB and other Ethernet devices
4. This Industrial Media Converter applies store-and-forward mechanism to avoid packet loss and error frames
5. Support wire-speed transmission and full-duplex flow control / half-duplex back pressure mode
6. Jumbo frames support a maximum of 1536 bytes
7. 12V to 52V DC or 24V AC Wide power input, redundant power and reverse polarity protection
8. -40 to 80 ℃ operating temperature to meet a variety of complex environments
9. IP40 protection standard for housing
10. Power port and Ethernet port supports ESD protection and EFT protection
11. DIN rail and panel mounting for easy installation.
12. Support Dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
13. Support POE power supply up to 25.5W(optional)
14. Support SFP fiber module
